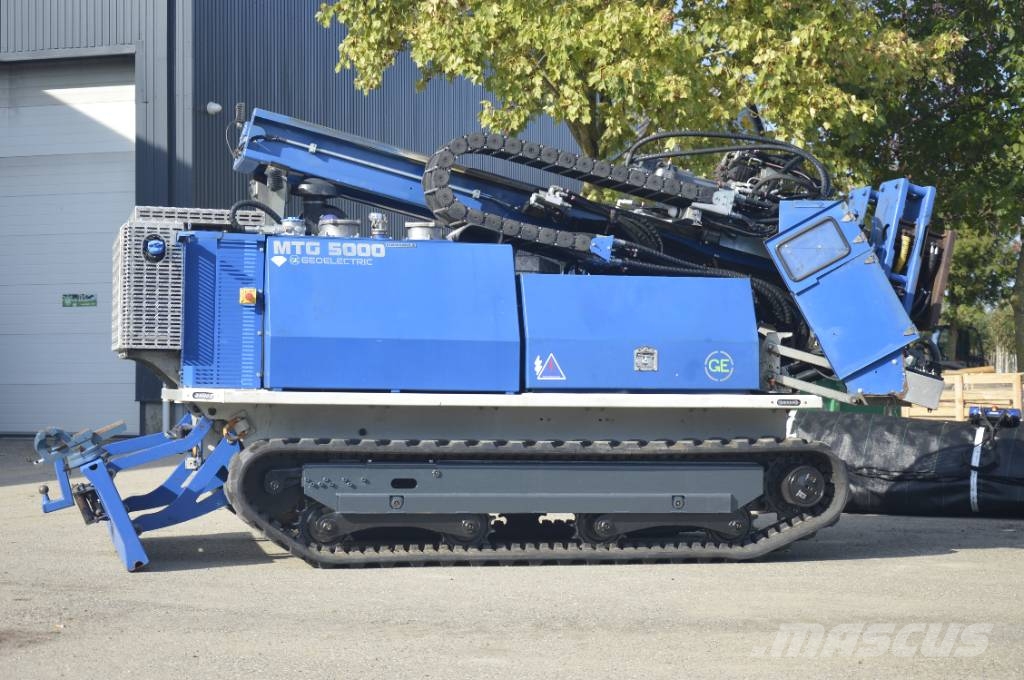

GEOELECTRIC MTG 5000

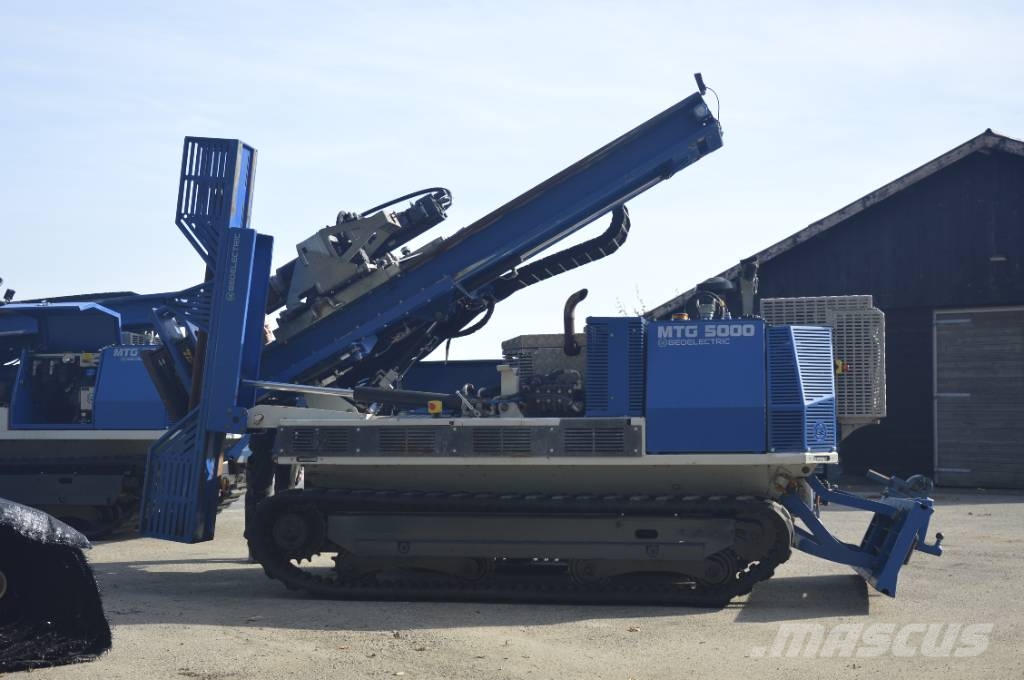

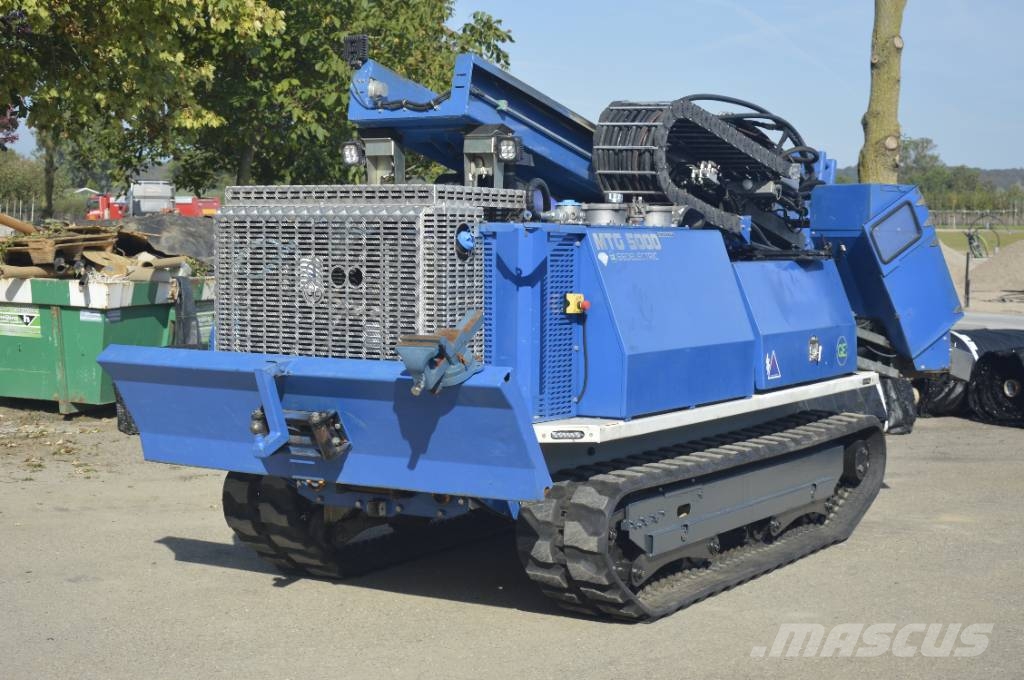

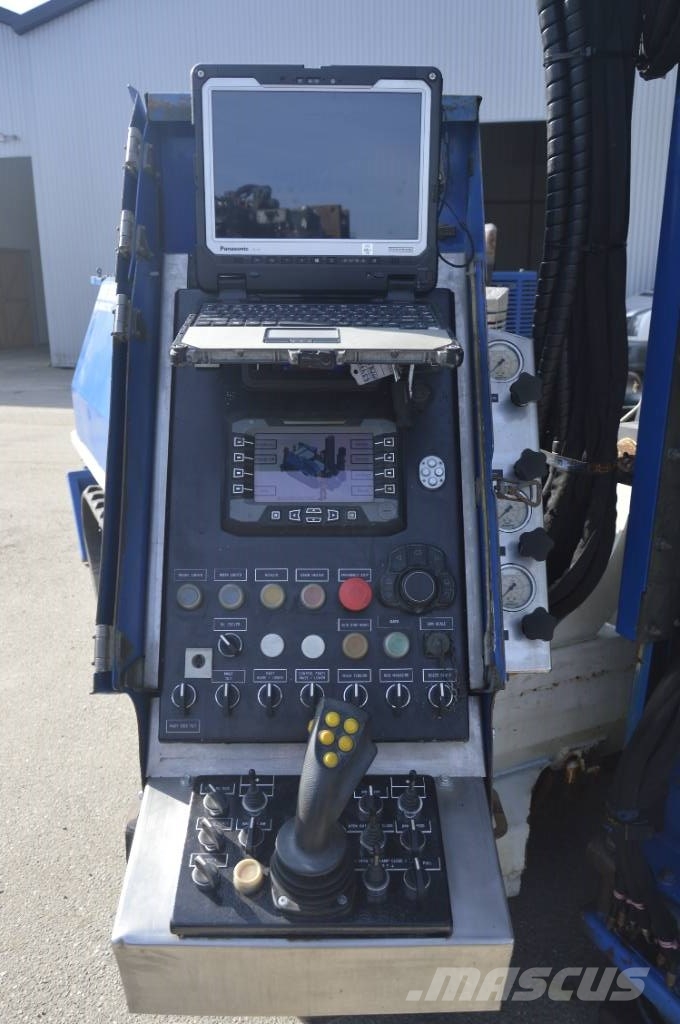

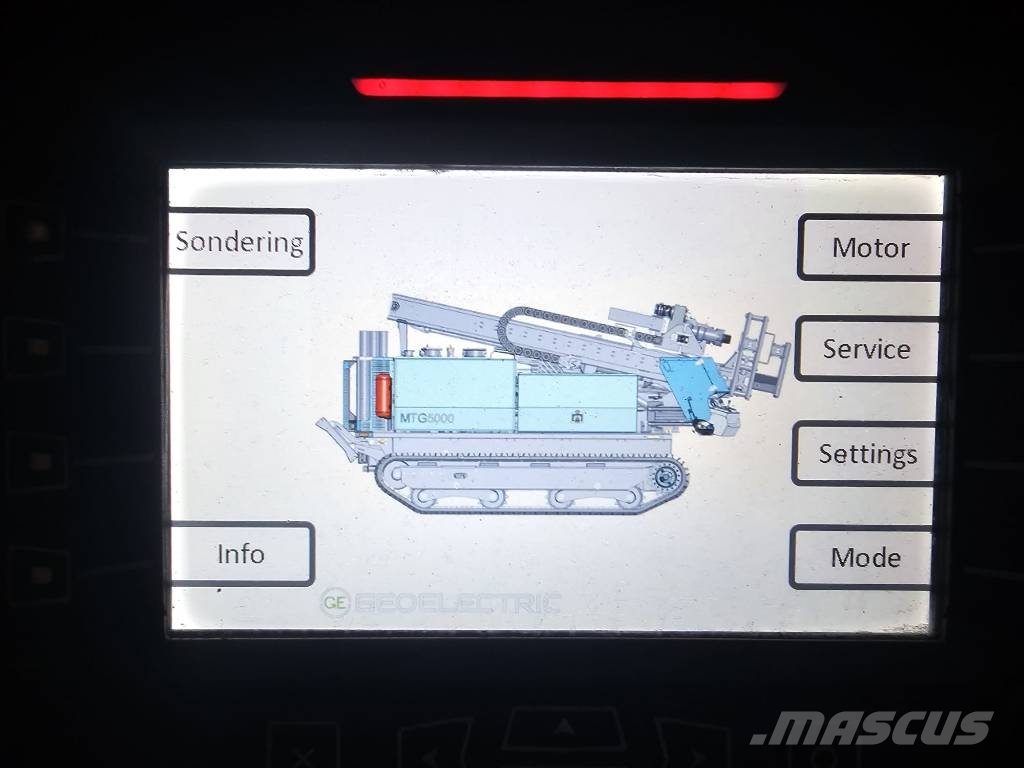

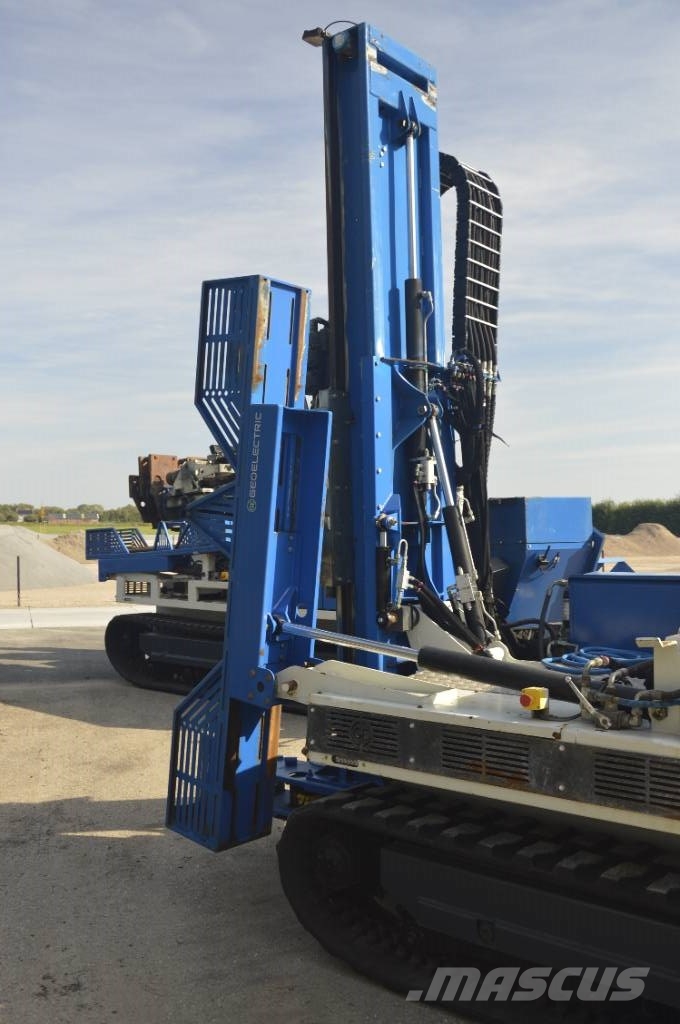

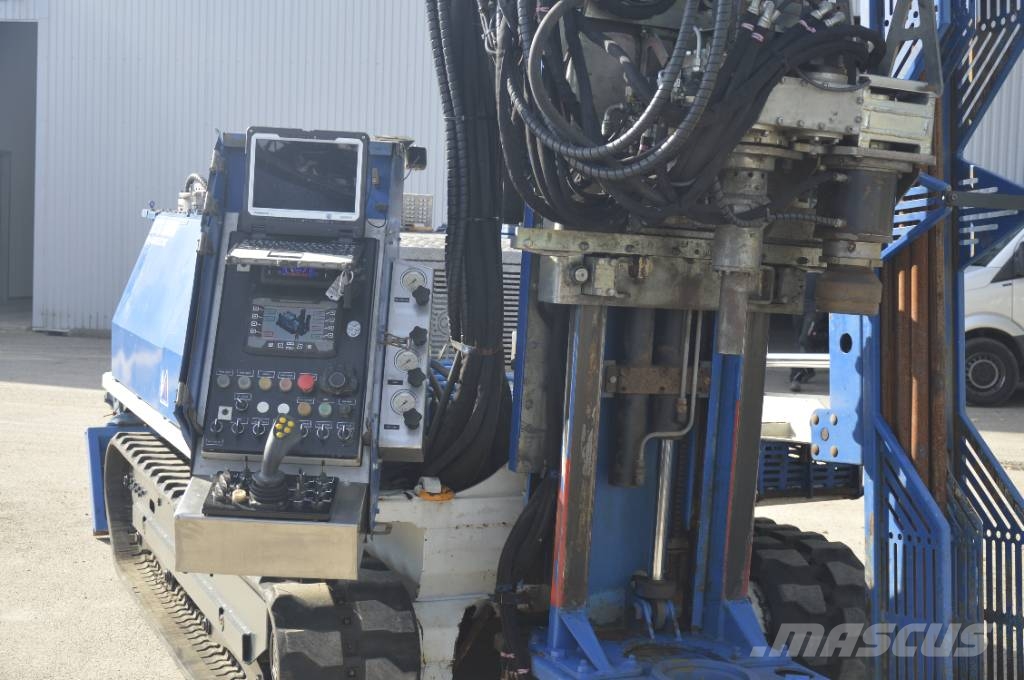

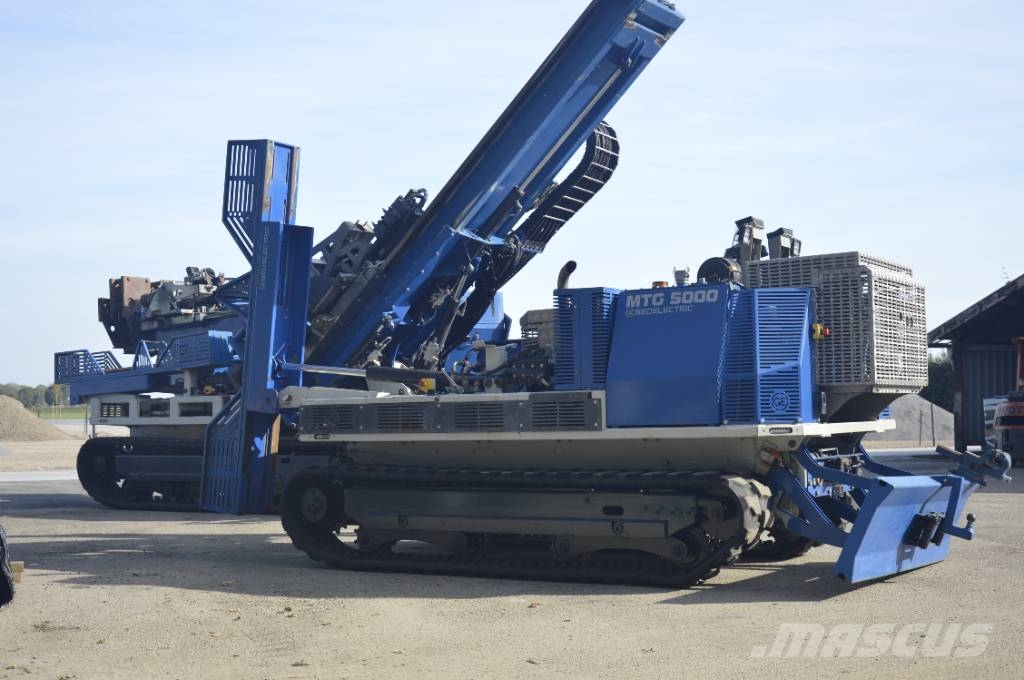

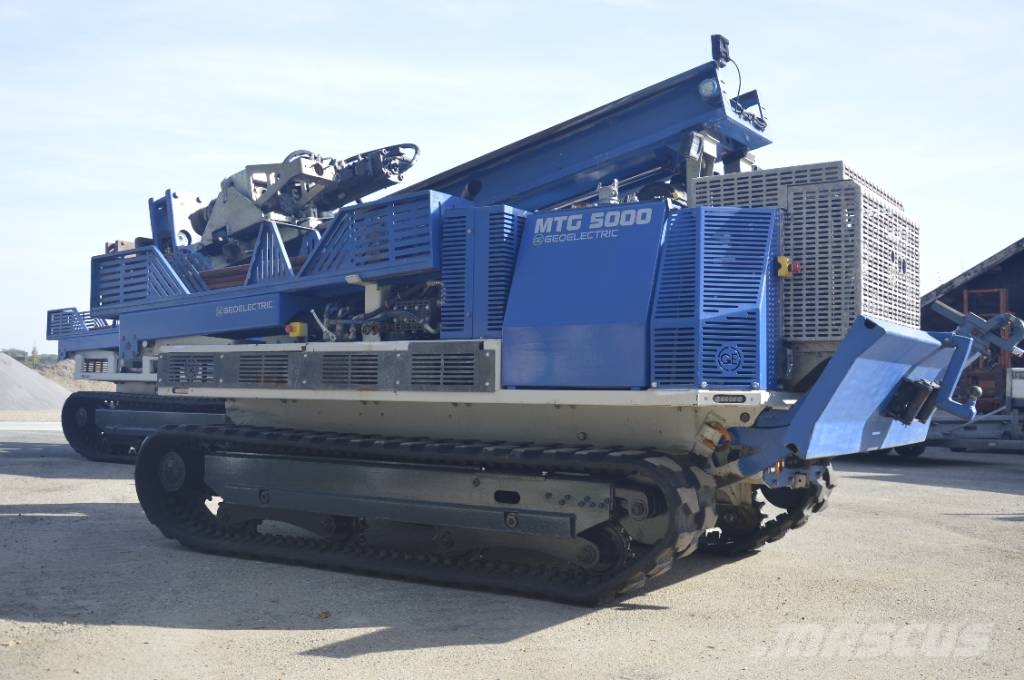

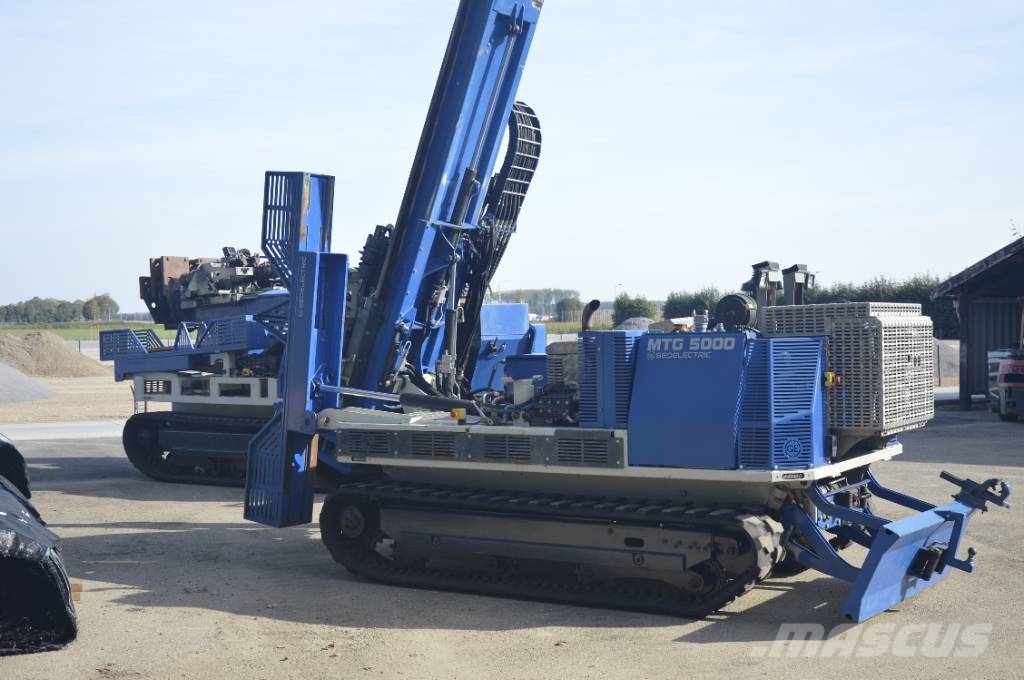

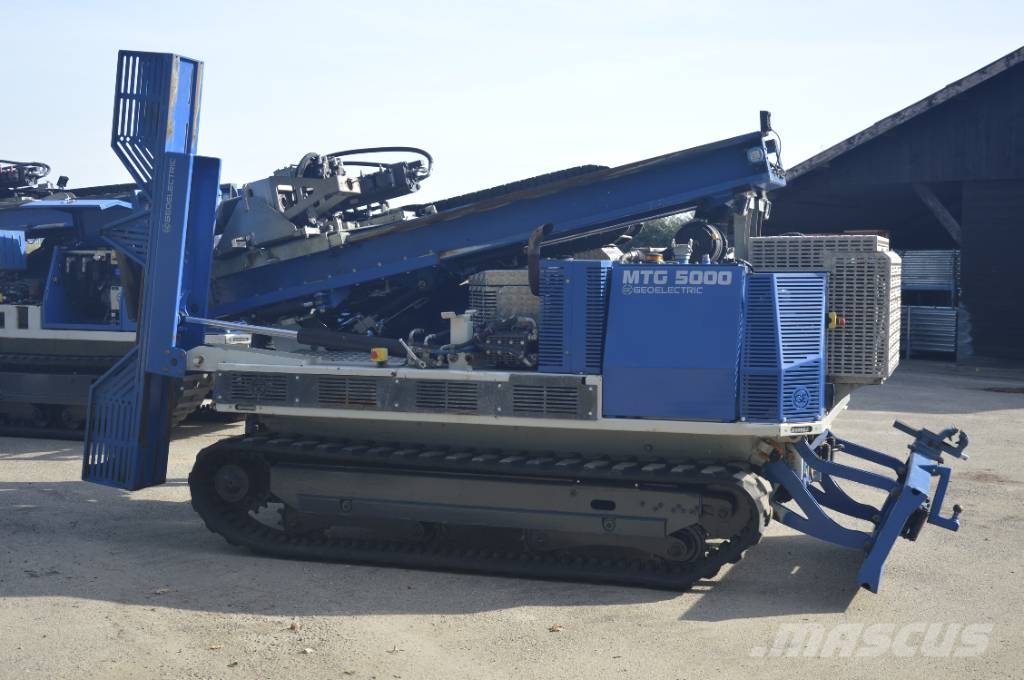

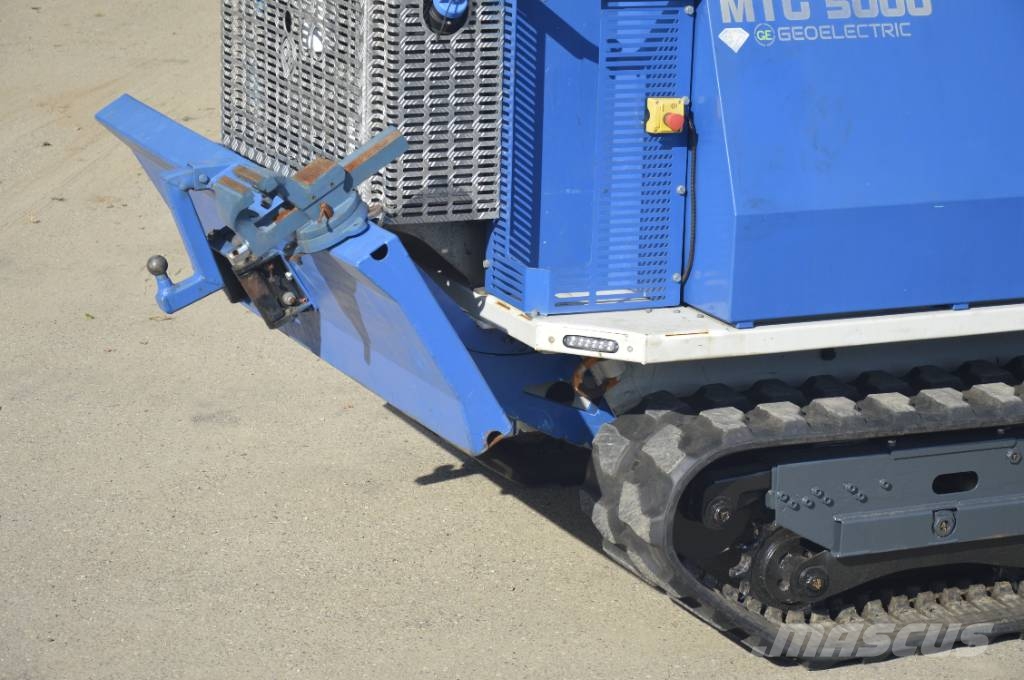

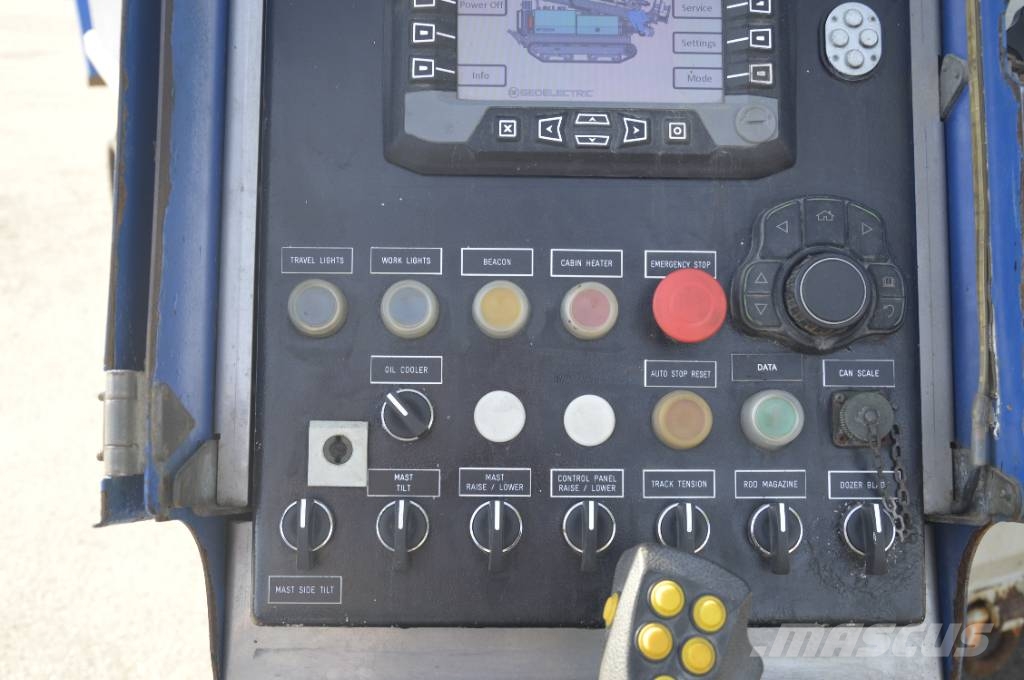

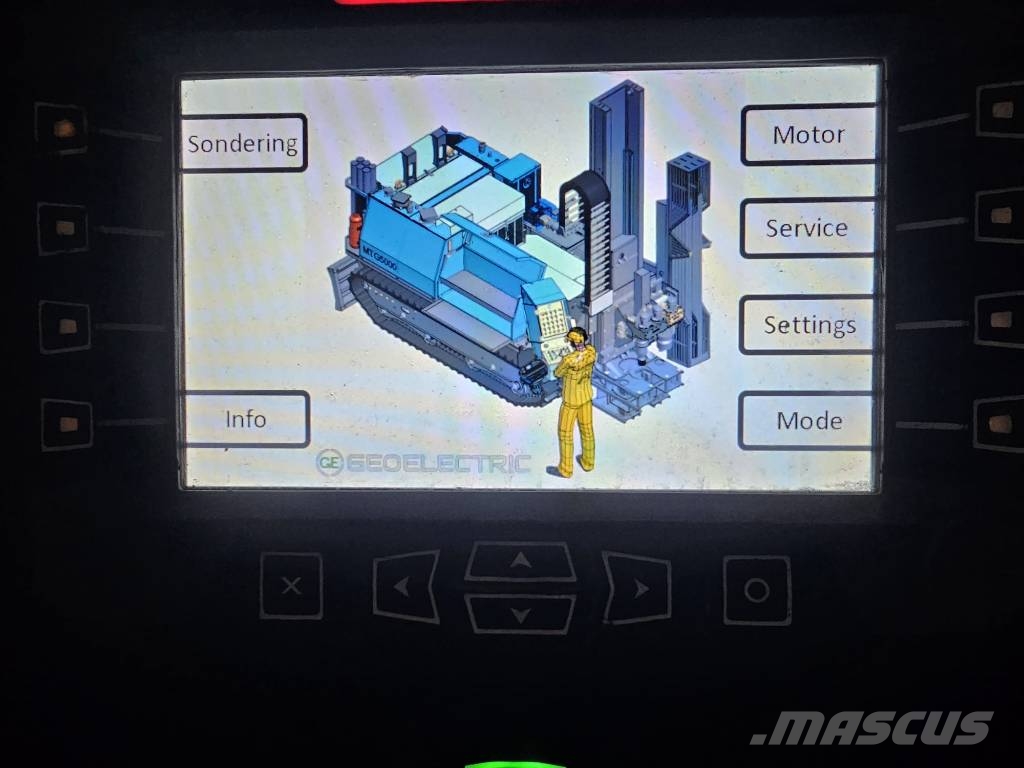

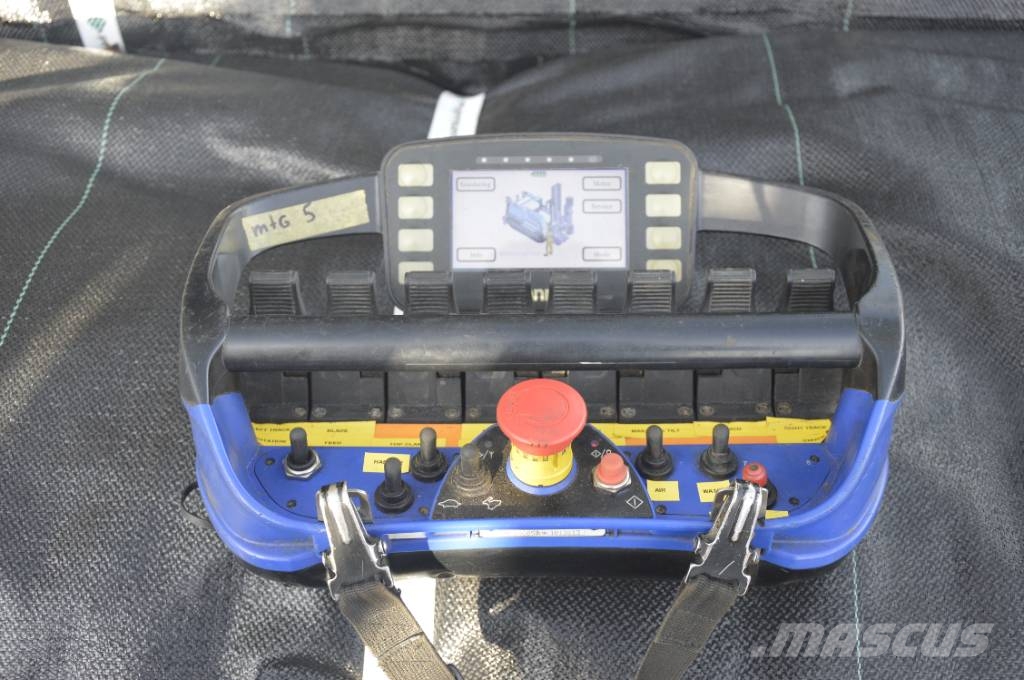

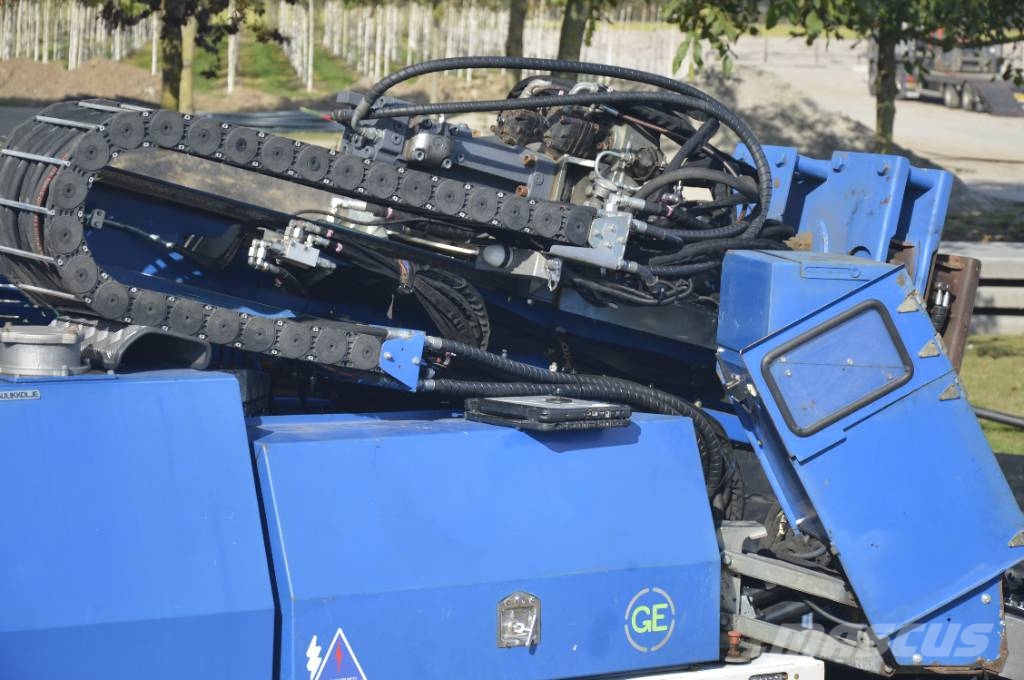

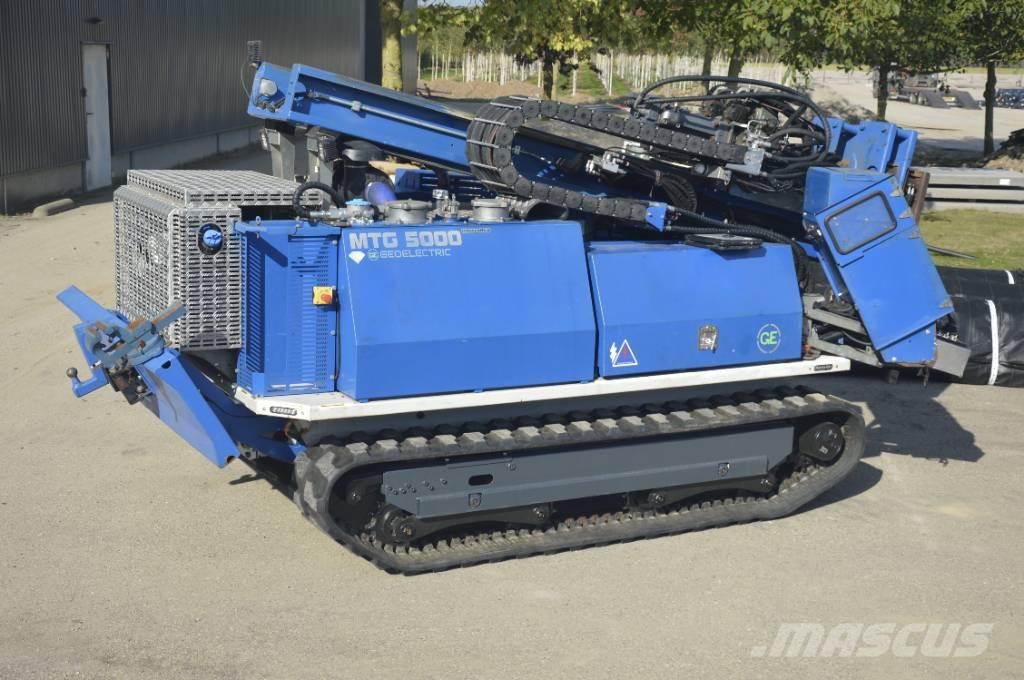

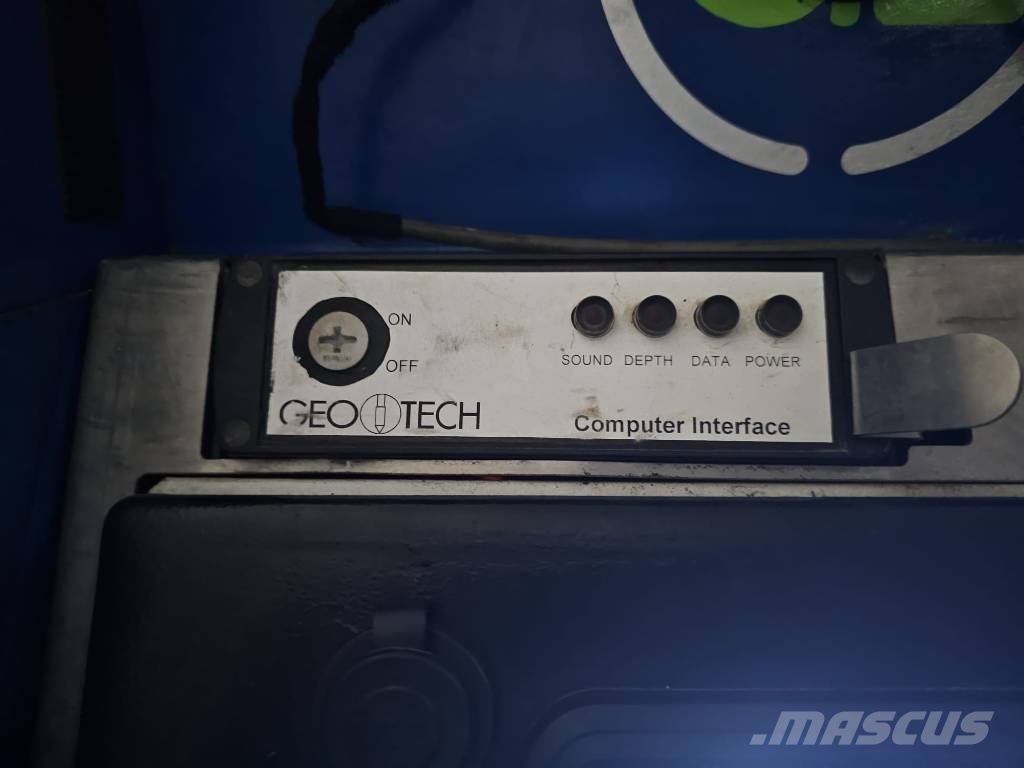

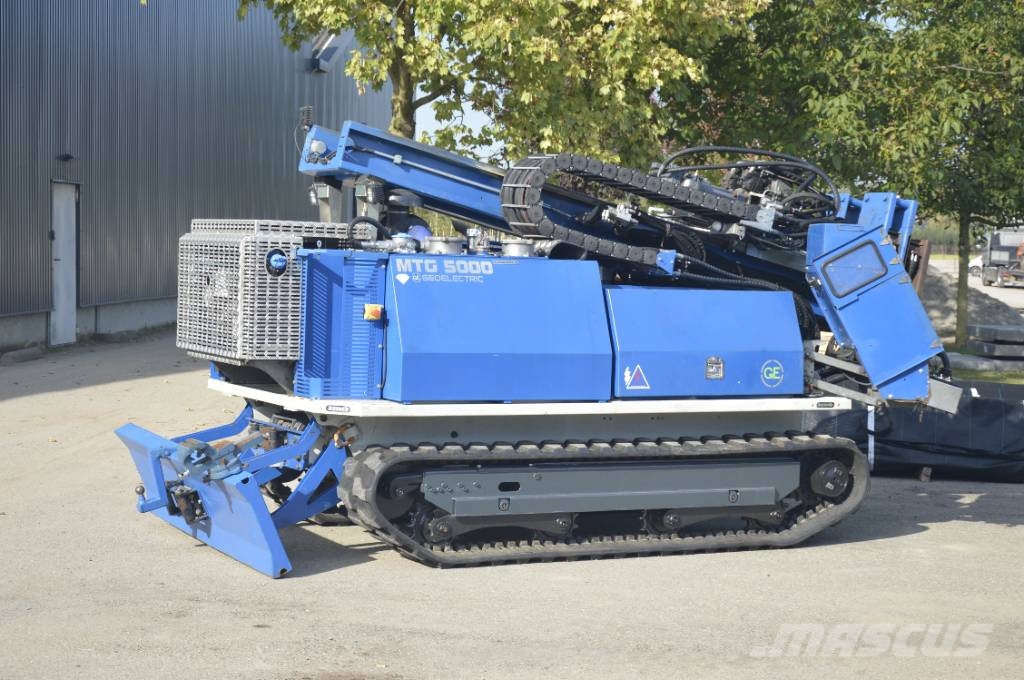

GEOELECTRIC MTG5000 Machine models Geoelectric machines are manufactured in Finland. MTG SERIES is a third generation geotechnical drill machine. The machines are built to be user-friendly and to withstand hard work and various weather conditions. The machines have a number of new and innovative technological solutions and are constantly being developed. The drillmast is built of high-strength steel which is angled in shape to withstand even greater forces. The high-strength steel chassis is designed to withstand the high load caused by drilling. The chassis has been built to be self-supporting and is therefore very strong. Thanks to the newly designed chassis solution and rubber tracks, the ground pressure is low and the machine also has excellent off-road driving characteristics. Because of rubber tracks, damage to the environment is also minimal. In addition, the operator of the machine is able to reliably control all components on the radio, if desired, through the new “Geoelectric Auto Drill System” program With this machine you are able to do geotechnical soundings and deep drilling, as well as diamond coring and sampling. DIMENSIONS Weight 6000kg Length (transport) 4500-4750mm Width 1 950mm Height (transport) 2 170mm Clearance 410mm ENGINE AND CHASSIS Engine Perkins 100kW diesel 400mm wide rubber track 2 boggie pairs – 8 carrying wheels 2 Drive wheels 2 hydraulically tensioning wheels DRILLMAST Stroke 2 400mm Feed force 90kN (Theoretical) Lift force 120kN (Theoretical) Double gear drill head with hydraulically operated side shift Rod lock one side-squeezing or two locks with opening motion Mast sideways tilt 10° in either direction DRILL GEARS Gear 1 2 800Nm, 0-80Rpm Gear 2 3400/6800Nm, 0-70/0-35Rpm (Doofor vrs 1700/3400Nm 0-140/0 70Rpm
