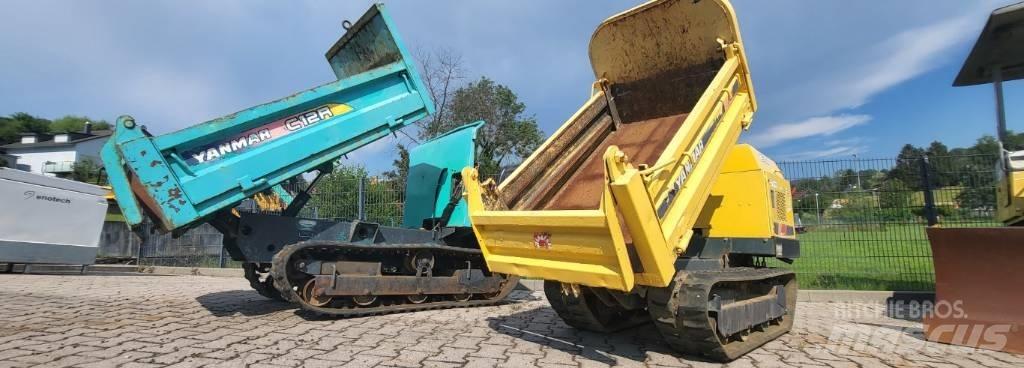

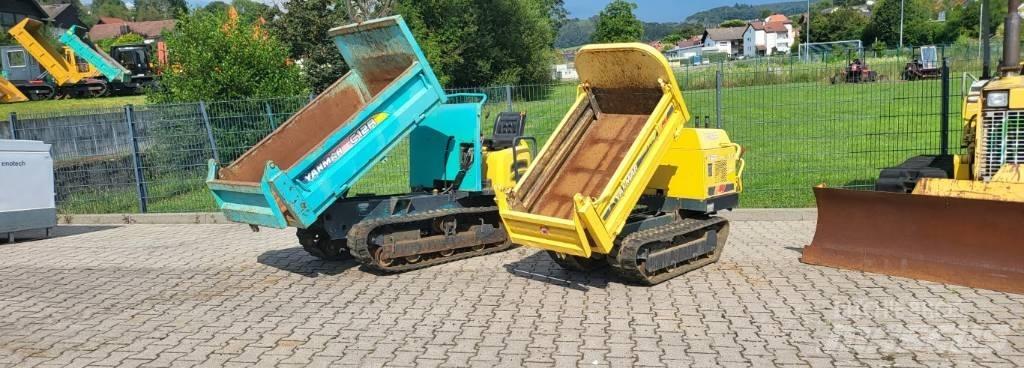

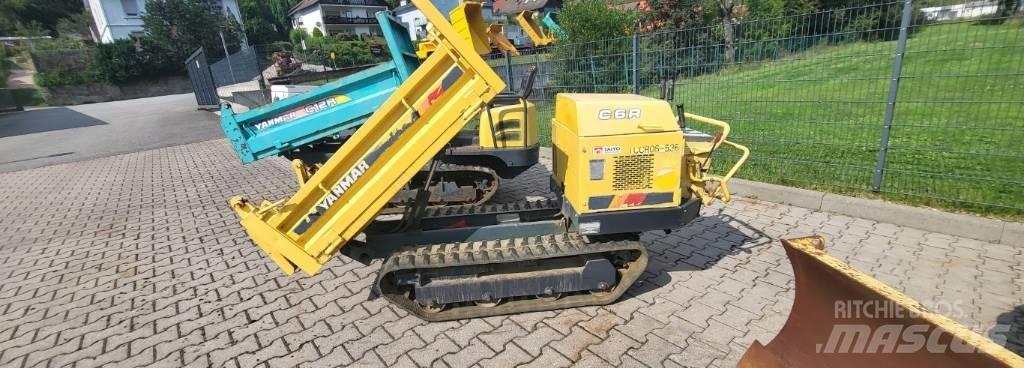

Yanmar C 6 R

Weight: 600 kg Payload 480 kg max. tipping angle 57° Dimensions: Length approx. 2205 mm Width approx. 790 mm Height approx. 1120 mm Loading area: 1210 x 655 x 255 mm Capacity flat 0.20 m³ heaped 0.26 m³ Track width 230mm Ground pressure 0.27 kg/cm² Engine: YANMAR L70 ASEFW air-cooled diesel engine Power 6.1 HP at 1500 rpm Fuel tank 5.5 L Grading ability 25° Drive speeds: 1st gear 1.4 km/h 2nd gear 3.4 km/h Reverse 1.7km/h
