Cobra T12000 XP

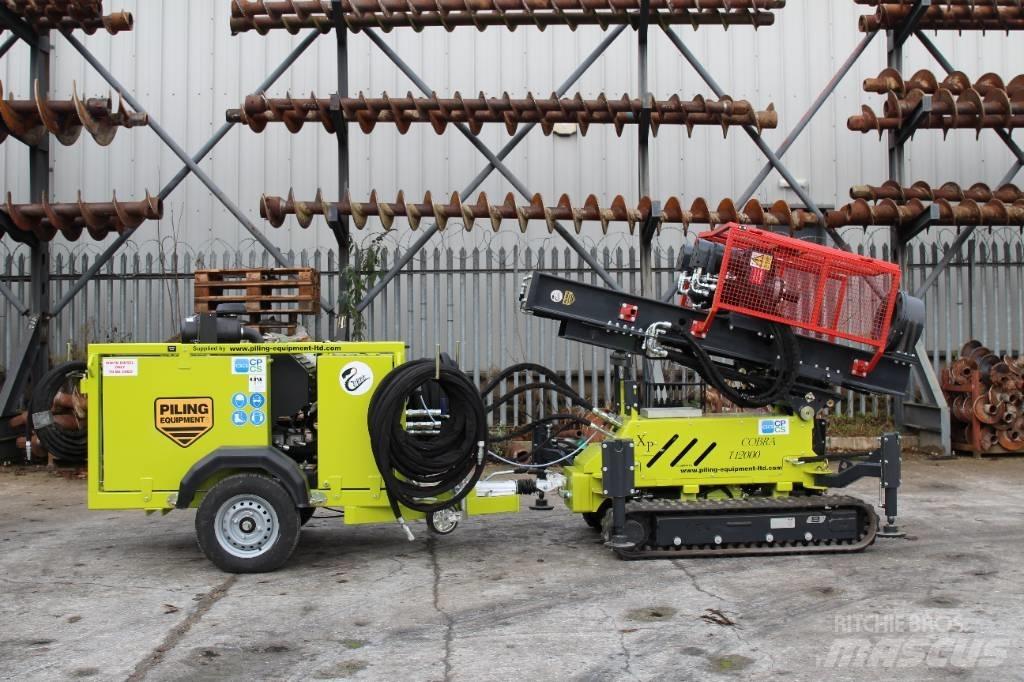

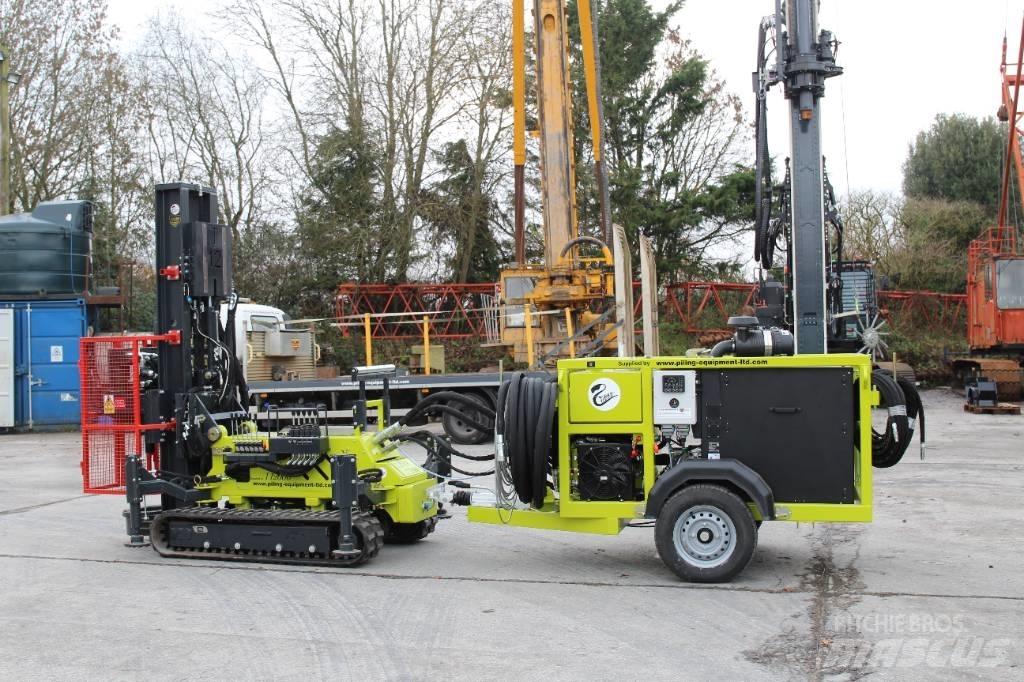

Cobra T12000 XP Hydraulic Mini Piling Rig Maximum Torque: 12000Nm Plus Extraction Force: 4.5 T Four speed rotary gearbox 22rpm 12000Nm, 32rpm 9000nm, 43rpm 6000Nm, 58rpm 5000Nm Mast Type: Chain / Ram Feed Stroke: 2,010mm Max. Diameter: 450mm Working Height: 2,800mm Mast Angle: -5 +90 Mast Side Tilt: 7° Expandable Track Base 780mm min 1,200mm max Tracking Speeds: 2.5 km/h (low), 5 km/h (high) 250mm, 300mm, 350mm, auger guide rings Detachable safety gates with kill switch to HSE standards Hydraulic controls mounted on a swing-out control arm Four Hydraulic Stabilization Legs Basic Weight: 2,050 kg Site Towable Power Pack Engine: Hatz 4H50 TICD Super Silent (Fulfils US EPA, Tier 4 final / EU Stage V) Max. output / torque [kW@rpm] 55 @ 2300–3000 / [Nm@rpm] 240 @ 1600–2100 Hydraulic pumps 110ltr / 32ltr, 180 bar Emission Sound Pressure: 77.1 dB Sound Power Level: 85.1 dB 25m Hydraulic Hose Extension Set Power Pack Weight: 1,200 kg Total weight: 3,250 kg
