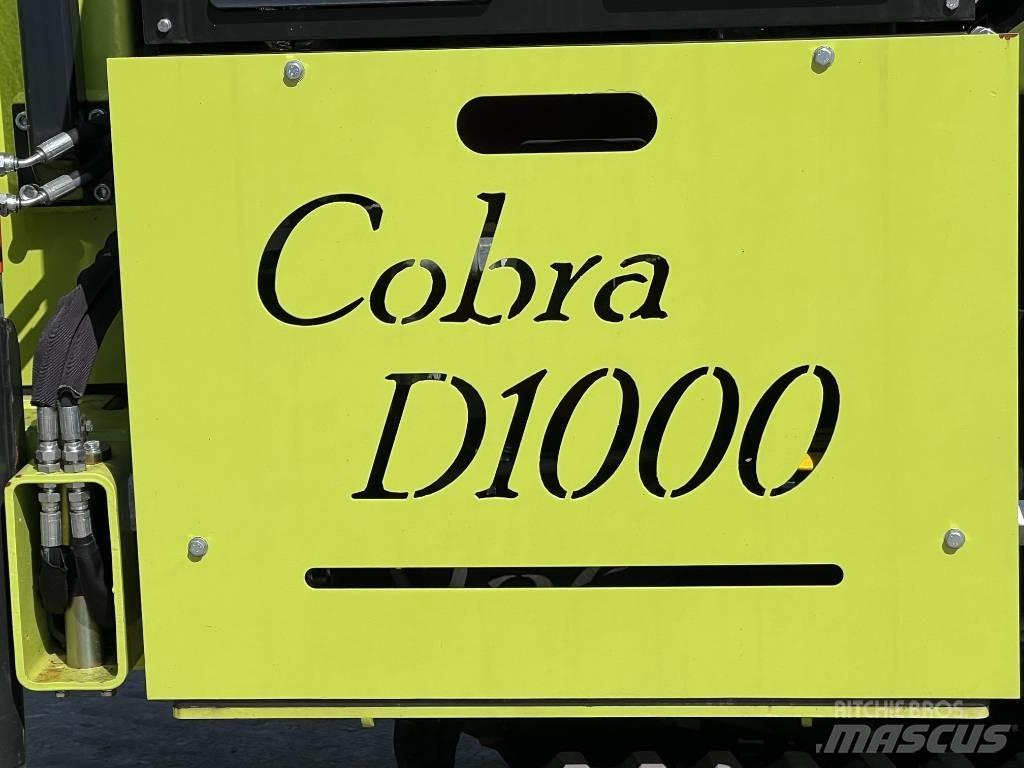

Cobra D1000

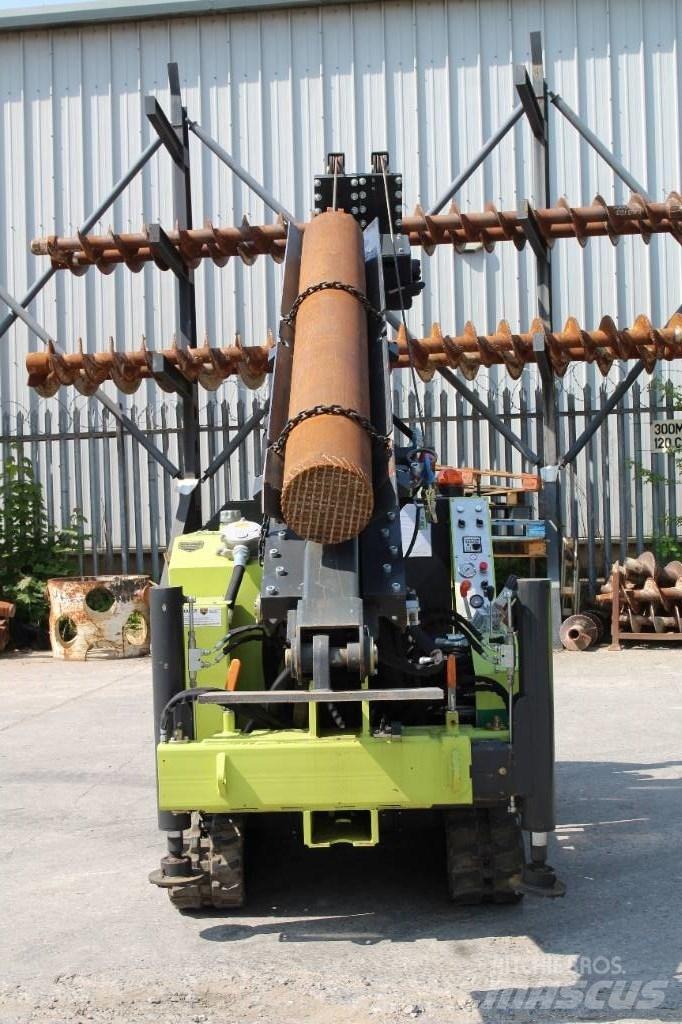

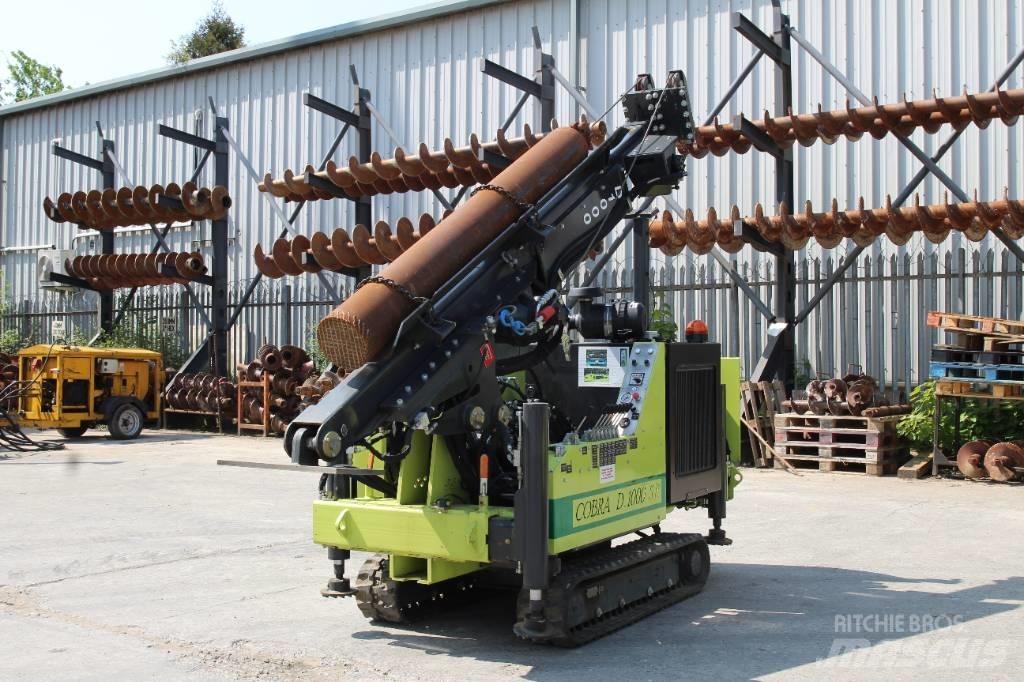

Cobra D1000 Hydraulic Mini Drop Hammer Main Winch: Pullmaster PL5 Maximum Diameter: 323 mm Working Height: 6,121 mm Mast Tilt: 10° Expandable Track Base 1,200mm min 2,100mm max Tracking Speeds: 2.2 km/h (low), 3.5 km/h (high) Four Hydraulic Stabilization Legs Onboard Manual Hydraulic Controls & Scanreco Remote Controls Engine: Hatz 4H50 TICD Super Silent (Fulfils US EPA, Tier 4 final / EU Stage V) Max. output / torque [kW@rpm] 55 @ 2300–3000 / [Nm@rpm] 240 @ 1600–2100 Hydraulic Pumps 1: 33ccm x 90 l/min 210 bar / 2: 6ccm x 16 l/min 210 bar Emission Sound Pressure: 77.1 dB Sound Power Level: 85.1 dB Transport dimensions (L / W / H) 3,750 / 1,200 / 2,100 Basic Weight: 3960 kg
