PM 100028 SP

Name: PM 100028 SP
Brand: PM
SKU: 5639EBB7
Availability: InStock

السعر من دون ضريبة القيمة المضافة

السعر عند توقيع الطلب

المفضلة

حصة

حفظ عملية البحث

طباعة

المعلومات

مجموعة المنتجات

رافعات أخرى

الماركة/الطراز

PM 100028 SP

سنة الصنع

2018

موقع الماكينة

Milford، Massachusetts

البلد

الولايات المتحدة الأمريكية

الدرجة العامة

Mascus ID

5639EBB7

تفاصيل

أقصى قدرة رفع

100٬000 ton

مرفقات

https://freecranespecs.com/PM/100028-SP

معلومات أخرى

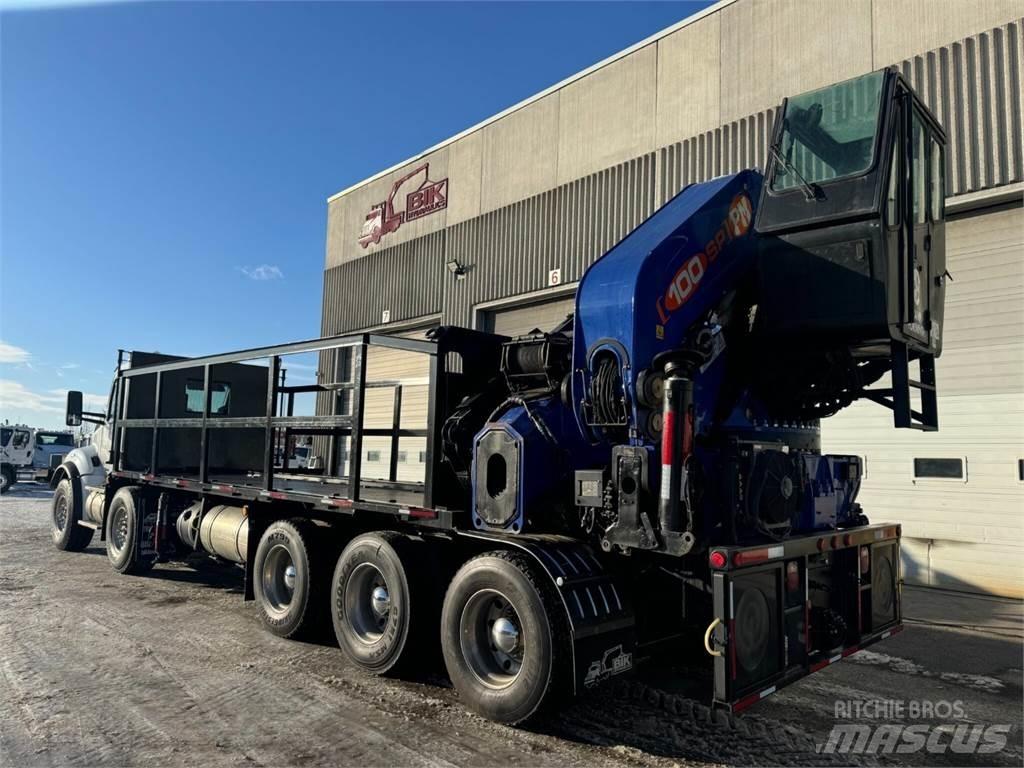

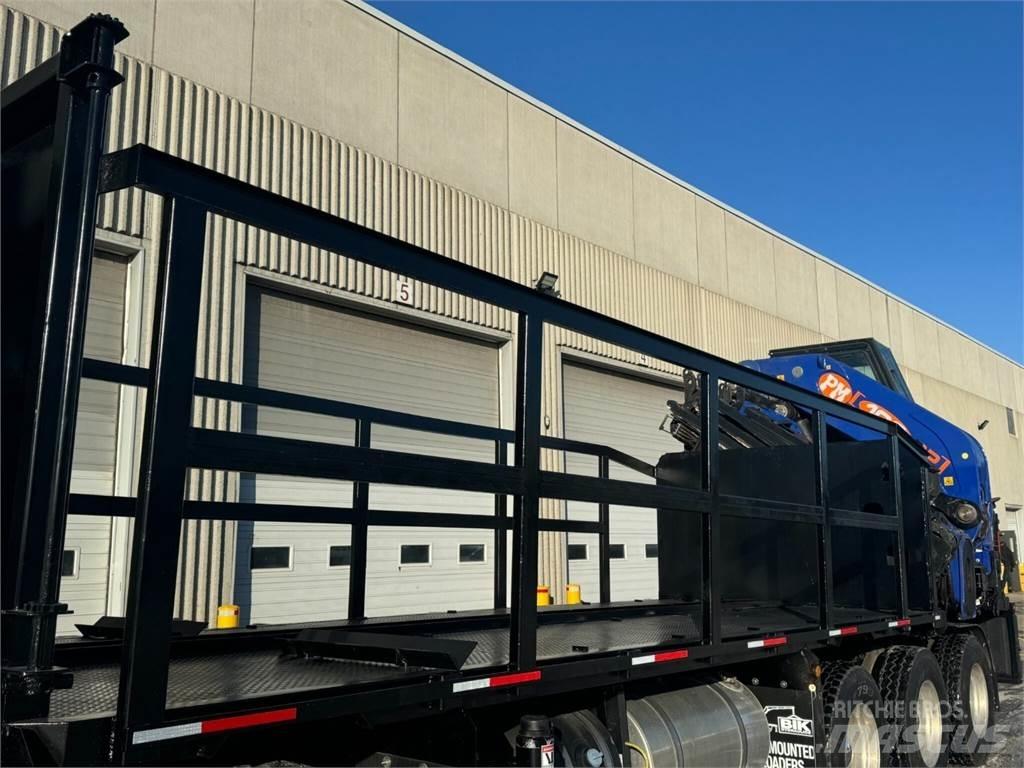

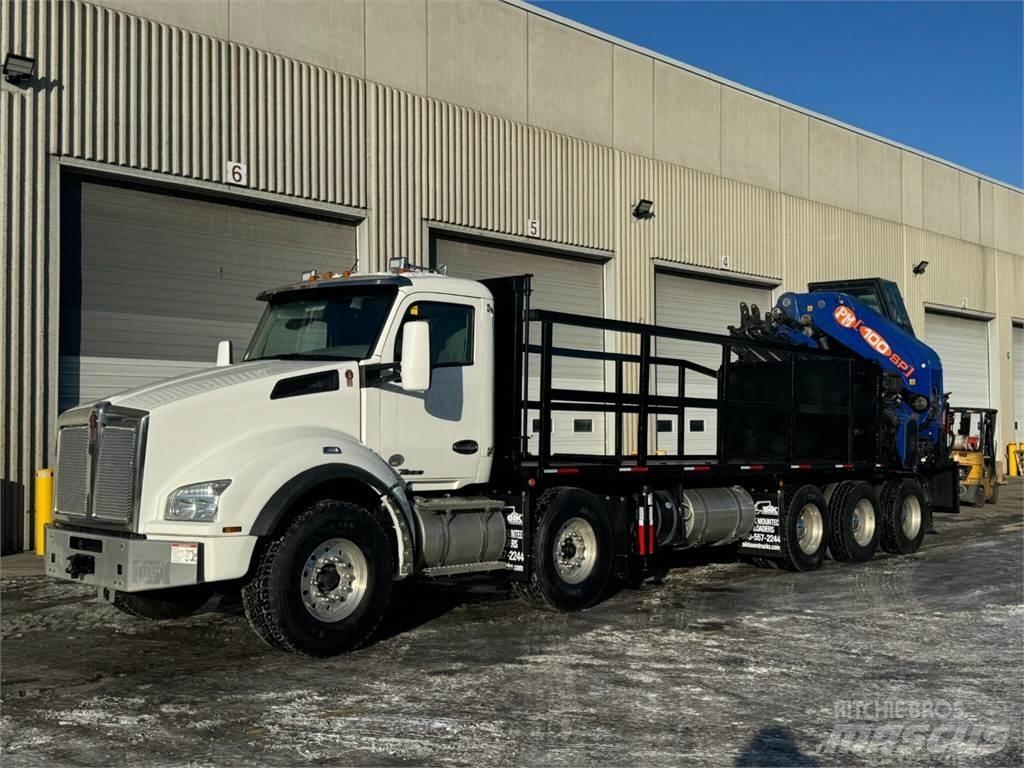

Boom Details PM 100028-SP Knuckle Boom Folding Hyd 8 ext Knuckle Boom – 65’ Horizontal Reach (77’ vertical) Horizontal Capacity: 36,800 lb ... 16’ 20,100 lb ... 27’ 16,000 lb ... 33’ 13,000 lb ... 39’ 9,300 lb ... 52’ 6,000 lb ... 65’ PM Power-Link connections at Main, Knuckle & Jib Cylinders, Dual Planetary Gear Motors & Continuous Boom Rotation 180-degree flip-up Hydraulic Extra Wide Main outriggers at pedestal – 30’ – 7” span – 360-degree full load chart stability Hydraulic Oil Cooler, high-pressure return filter and min. 80–gallon hyd oil tank with gate valves mounted at the front under deck Scanreco Radio Remote Control includes: 2-batteries, in-cab charger, and backup cord – 5 level turtle (micro) slow-down mode Simplified Hydraulic Overload System allowing maximized uptime and ease of maintenance Manual Controls – Danfoss valve located on boom column with plastic cover and mechanical hour meter Lifting Winch – 4-ton single-line pull winch that can be plumbed for up to 4 part line accessories Crane Painted PM Blue – Certified Painting Quality System – Load Tested and certified Installed at rear, with integral sub-frame, 3/8” front and centre -½” sheer plating at crane for maximized torsion strength Also Included: Auxiliary Extra-Wide hydraulic outriggers 23’ spread front mounted for 360 degree stability 1” Drawplate Plate at rear w/pintle hook 36” Alum locking checker plate toolbox installed (8) PVC stabilizer pads – with holders (4 pcs)., NOTE: Pictures of Shown when Unit was New Ideal Heavy Lift Precast Unloader CALL FOR DETAILS AT: 1-888-557-2244 OR 416-679-3838 Deck Details 22’ x 102” Steel Deck: 66” head board with window cut out with mesh Steel checker plate Floor Winch bar and holder Integral steel sub-frame and extension at rear as torque box for boom with all proper engineered sheer planting X-braces & support 2-Deck access Ladders, reflectors, conspicuity tape, Mud-flaps 6-Winches and tracks (sliding) under deck. Truck Details Used – 2018 Kenworth T880 T/A Steer – Tridrive (5 Axles total): 99,000 lb GVWR Paccar 13L Diesel – 505 hp w/Jake – 1,850 ft/lb torque Eaton Ultrashift Plus Automated 18 spd trans, Truck cab white (2) x 20,000 LB fronts with 425 / 65R22.5 tires 69,000 LB Tridrive Rears on Hendrickson Primax Air Ride Susp. With 56” spread at t/a, Double Frame Polished ALCOA Aluminum Wheels front and outer rear Chrome single polished Exhaust, Chrome Grille & Bumper 120-gallon alum fuel tank Loaded with Options Including: A/C, Tilt/Telescopic steering, AM/FM stereo with Bluetooth, high back air driver’s seat, fixed passenger seat, cruise, heated mirrors, exterior S/S sun visor, 6 wheel lock-ups , power windows and locks, Air ride cab, full differential locks, trailer air tow package, etc… عرض المزيد

BIK Boom Trucks - Milford, MA

177 Central St. 01757 Milford Massachusetts الولايات المتحدة الأمريكية
