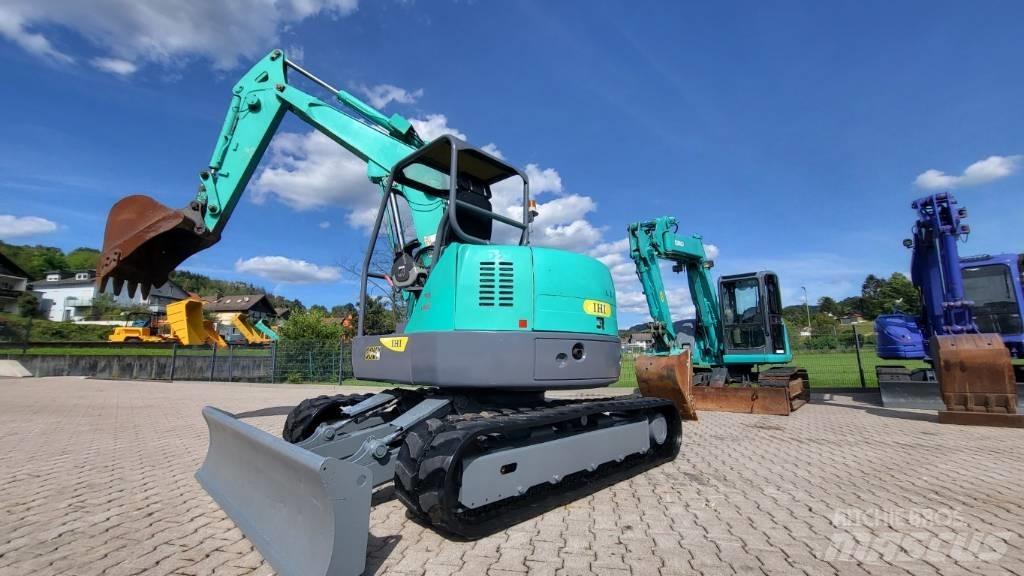

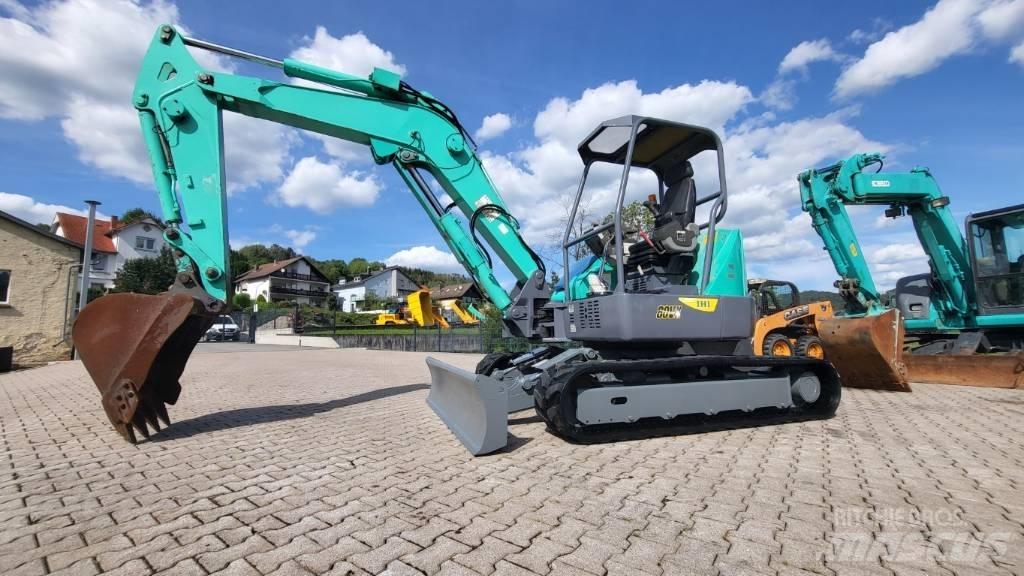

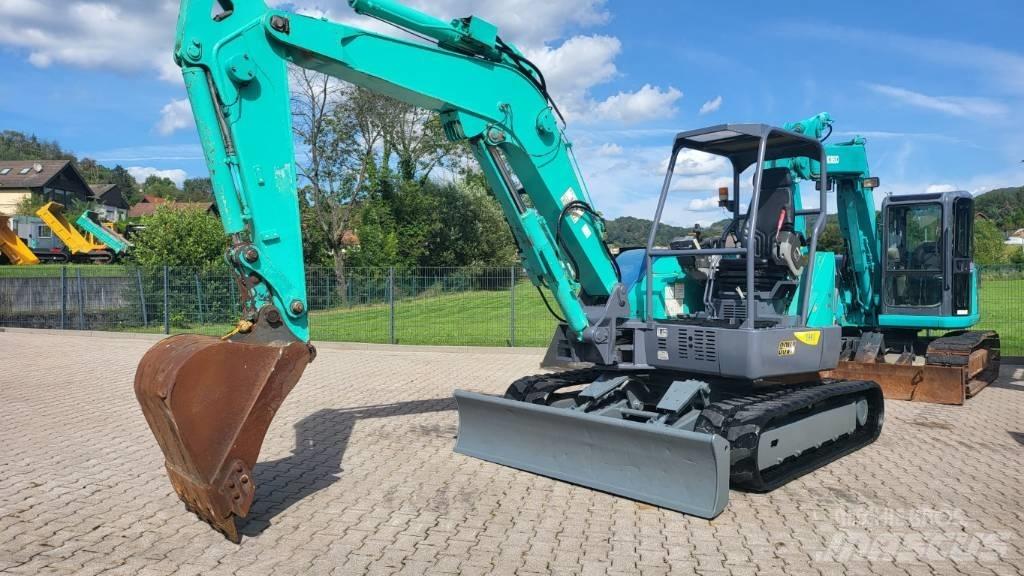

IHI 80 VX 3

Planierschild

Weight: 7500 kg Bucket: 0.25m³ / Bucket width 760mm Dimensions: Length approx. 6040 mm Width approx. 2200 mm Height approx. 2570 mm Length of undercarriage approx. 2720 mm Length of undercarriage (including dozer blade) 3280 mm Dozer blade 2200 x 500mm Turning radius 1100 mm Tracks width 450 mm Ground clearance 350 mm Max. reach 6820 mm Max. digging depth 6670 mm Engine: YANMAR 4TNV98, diesel Displacement 3,318 L Power 43.2 kW (58.7 HP) / 2100 rpm Climbing ability 30° Fuel tank 85 L Travel speed 2.6~ 4.3 km/h
