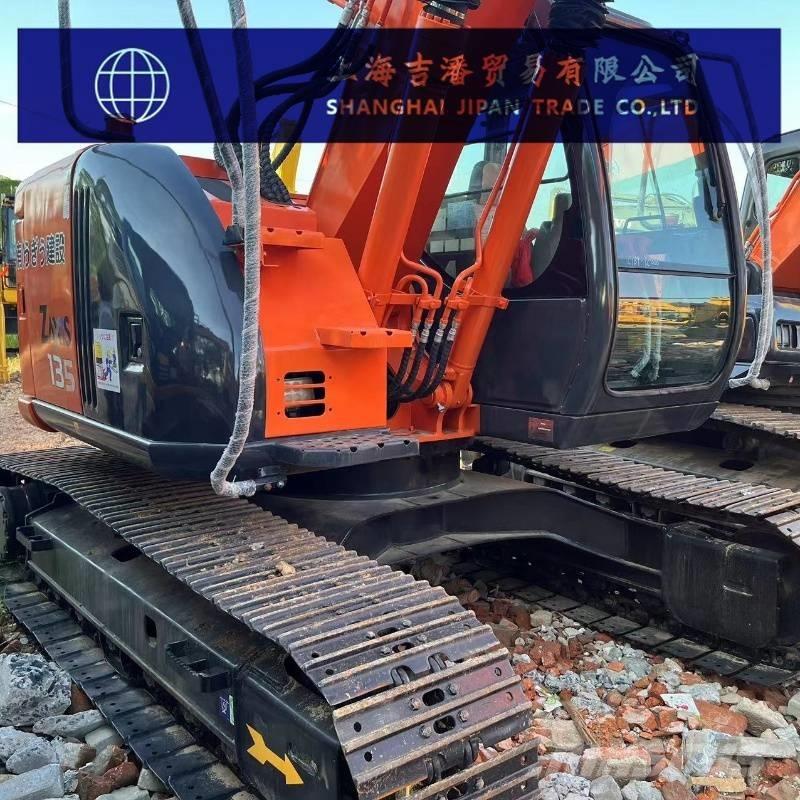

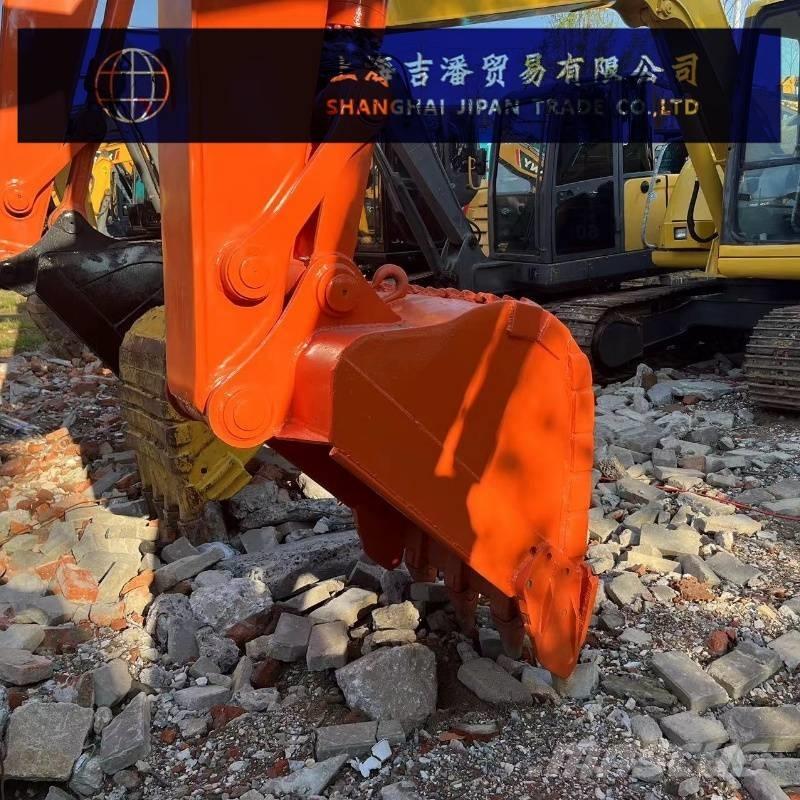

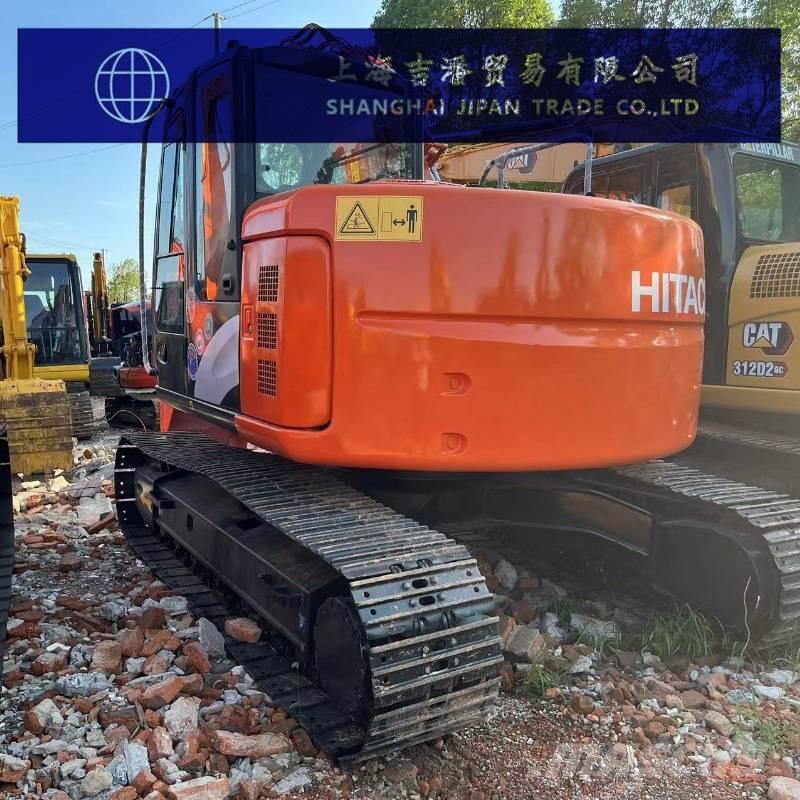

Hitachi ZX 135

Item Specification Operating Weight 14,800 kg Machine Body Weight 11,900 kg Bucket Capacity 0.50 m³ Engine Model Isuzu AR-4JJ1X Rated Power 78.5 kW (107 HP) / 2000 rpm Total Displacement 2.999 L Travel Speed 5.5 km/h (High Speed), 3.5 km/h (Low Speed) Gradeability 70% (35°) Bucket Digging Force 99 kN (10,100 kgf) (Normal Mode), 104 kN (10,600 kgf) (Power Mode) Arm Digging Force 65 kN (6,600 kgf) (Normal Mode), 69 kN (7,000 kgf) (Power Mode) Total Track Length 3,580 mm Minimum Ground Clearance 410 mm Rear Swing Radius 1,600 mm Total Transport Length 7,370 mm Total Transport Width 2,930 mm Total Transport Height 2,790 mm Maximum Vertical Digging Depth 4,730 mm Maximum Dump Height 6,830 mm Maximum Digging Height 9,290 mm Maximum Digging Depth 5,490 mm Maximum Digging Radius 8,390 mm Fuel Tank Capacity 220 L Hydraulic Oil Tank Capacity 155 L Engine Oil Capacity 17 L Urea Tank Capacity 13 L
