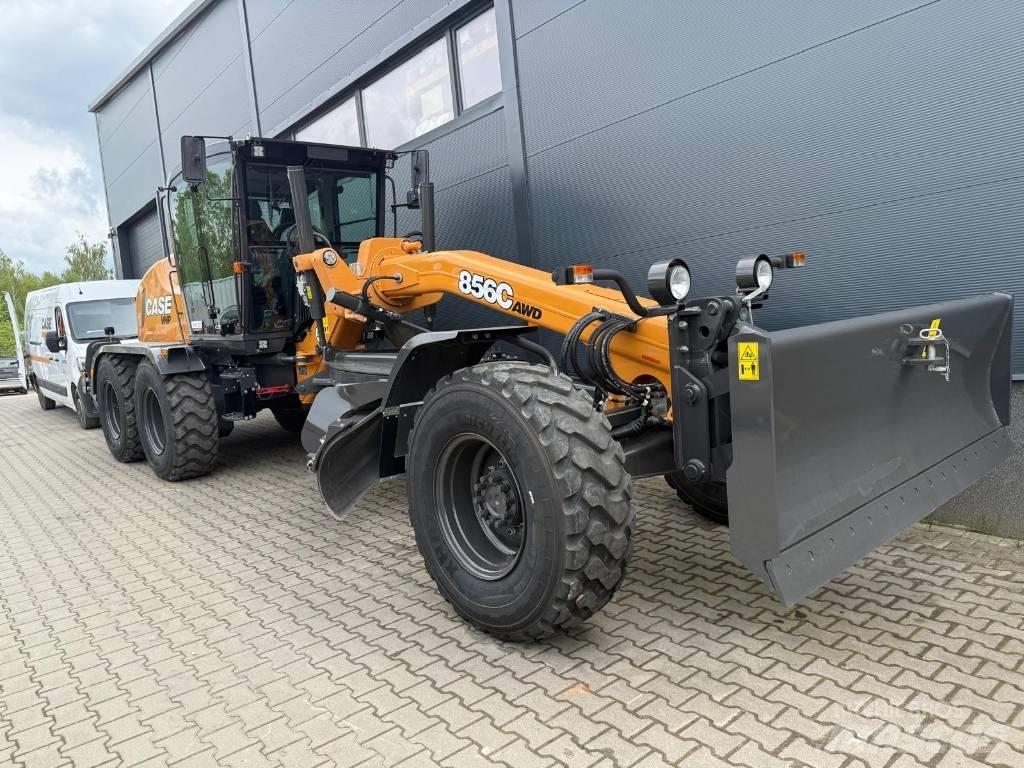

Case 856 C AWD

CASE 856C AWD Patented FPT engine with Hi-eSCR2 technology with Ad-Blue. The CASE grader is the only grader on the market that meets the Stage V exhaust emission standards using only DOC+SCRoF (selective catalytic reduction) technology as a post-treatment system for exhaust gases. This solution guarantees a significant reduction in fuel consumption and maintenance and operating costs: • - no DPF filter means no additional fuel consumption during work • - no DPF filter means no need for periodic replacement Drivetrain: • Engine: FPT - diesel, 6-cylinder, type N67 NEF, common rail, turbocharged intercooler capacity 6.7 l, meeting the latest Stage V exhaust emission standard; patented selective catalytic reduction system with Adblue In gears 1-3 power - 129 kW (173 HP) according to ISO 14396/ECE R120 In gears 4-6 power - 142 kW (190 HP) according to ISO 14396;/ECE R120 Torque - 850 Nm at 1400 rpm • Transmission: Full Power Shift type providing the ability to change gear under load Number of forward gears - 6 Number of reverse gears - 3 Torque converter with a ratio of 1.91:1 Pulling force 117 kN Hydraulic system: • Multi-piston pump with a flow of 126 l/min • The “load sensing” system operating in a closed circuit with a pressure of 200 bar allows for very high precision of operation • System capacity – 200 liters Runner system: • Hydraulically controlled steering system • Six equal wheels with tires of size – 17.5 R25 XHA MICHELIN • Wet disc brake system acting on four rear wheels • Front axle with hydraulic camber adjustment and steering linkage Axle oscillation - ± 15° Wheel tilt - ± 20.3° Frame turn - ± 28° Ground clearance – 0.55 m • Tandem rear axle: Axle oscillation - ± 15° Automatic No Spin differential lock (no slippage) Slewing ring: • Possibility of 360° rotation • Slewing ring diameter - 1.35 m • Closed slewing ring with internal lubrication of the slewing bearing, preventing dirt from entering Electrical system and cabin: • Voltage 24 V • Alternator 90 A • Battery 2 x 100 Ah • Spacious cabin, low profile, comfortable ROPS/FOPS cabin equipped with air conditioning, LED work lights, adjustable steering column; comfortable, fully pneumatically adjustable operator's seat, doors on both sides of the cabin • Reversing camera with monitor • LED headlight package: 4 from the cabin + 4 working • Warning light • Reversing alarm (can be switched off) • "JOYSTICK" CONTROL • CASE SiteWatch telematics system with 3-year Advanced subscription - uses a state-of-the-art electronic module optionally installed in the machine to collect and compile information from a given machine and from GPS satellites Weight of the machine ready for work - 16,600 kg • Height 3,150 mm • Length 10,044 mm • Width 2,555 mm Additional equipment: • Rear ripper (5 teeth) with guard • Front blade with parallel kinematics and mechanical indicator • Middle blade 3.66 m wide and 0.61 m high (floating) • Electric refueling pump • Adapted to 3D levelling system (TRIMBLE, LEICA) Price: €249,000
