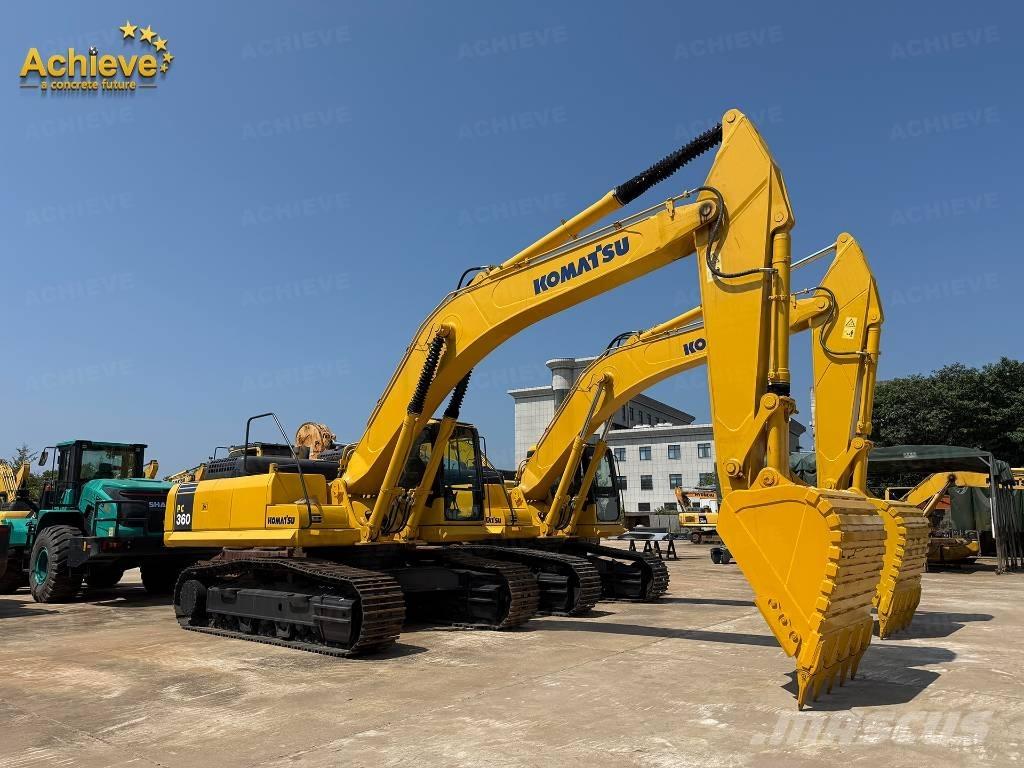

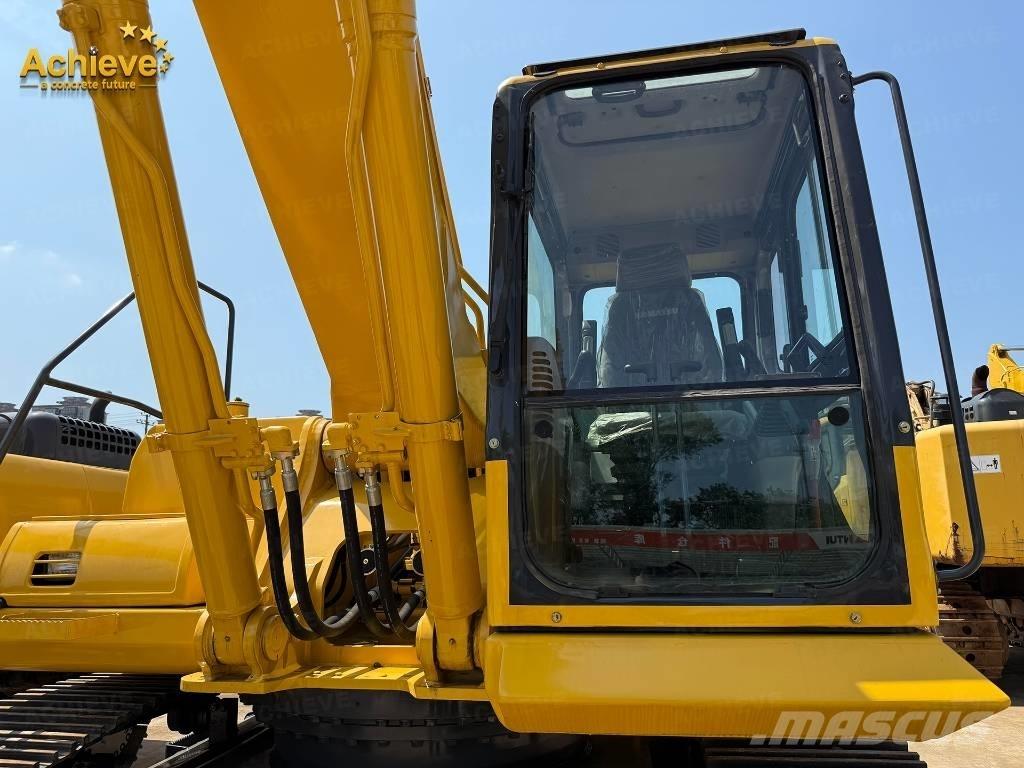

Komatsu PC 360

The following are some parameters of Komatsu PC360 excavator : Models : Komatsu PC360-7, PC360-8M0, PC360-11M0, etc. 3 Engine : Use high-efficiency and energy-saving engine, such as SAA6D114. 1 Hydraulic system : Equipped with advanced pressure-compensated CLSS hydraulic system, supporting multiple operating modes. 1 Tonnage : Different models have different tonnages. For specific parameters, please refer to the relevant website. 2 Fuel consumption : Adopt high-efficiency and energy-saving hydraulic system to reduce fuel consumption. 1 For more detailed information, please visit the relevant website to obtain the latest parameter configuration. Machine operating weight (kg)33000 Bucket capacity (m³)1.6 Boom length (mm)6470 Arm length (mm)3185 country of originJining, Shandong Tonnage (tons)36 bucketbackhoe ManufacturerJoint venture/import powerTraditional power bucketbackhoe ManufacturerJoint venture/import powerTraditional power performance Rotation speed (rpm)9.5 Walking speed (km/h)3.2/4.5/5.5 Gradeability (%)70/35° Ground pressure (Kpa)67.7 Bucket digging force (kN)227 Arm digging force (kN)171 Powertrain Engine modelKomatsu SAA6D114E Rated power (kw/rpm)180/1900 Displacement (L)8.27 Cooling methodWater cooling Working form6-cylinder, water-cooled, direct injection, turbocharged, mechanical full-range speed regulation; bore × stroke: 114mm × 135mm hydraulic system Travel hydraulic motor typeAxial piston type × 2 Rotary hydraulic motor typeAxial piston type × 1 Main pump maximum flow (l/min)535L/min Travel hydraulic circuit (Mpa)37.3 Rotary hydraulic circuit (Mpa)27.9 Control hydraulic circuit (Mpa)3.2 Boom cylinder - number × cylinder diameter × stroke (mm)140×1480×100 Arm cylinder - number × cylinder diameter × stroke (mm)160×1825×110 Bucket cylinder - number × cylinder diameter × stroke (mm)150×1285×110 Is the hydraulic crushing pipeline standard?否 Oil capacity Fuel tank (L)605 Hydraulic oil tank (L)188 Engine oil change amount (L)35 Coolant (L)32 Main body size Total transport length (mm)11140 Total transport width (mm)3190 Total transport height (mm)3280 Cab height (mm)3130 Track ground contact length (mm)3700 Total track length (mm)4625 Track shoe width (mm)600 Total track width (mm)3190 Track gauge (mm)2590 Minimum ground clearance (mm)500 Counterweight ground clearance (mm)1185 Rear end turning radius (mm)3450 Scope of work Maximum digging radius (mm)11100 Maximum digging radius of the parking surface (mm)10920 Maximum digging depth (mm)7380 Maximum digging height (mm)10210 Maximum unloading height (mm)7110 Maximum vertical digging depth (mm)6480 Maximum effective digging depth (mm)7180 Bulldozer lift or pushing depth (mm)无 The Komatsu PC360-7 excavator offers several advantages: 1. Powerful Powertrain: The Komatsu PC360-7 excavator is equipped with a powerful
