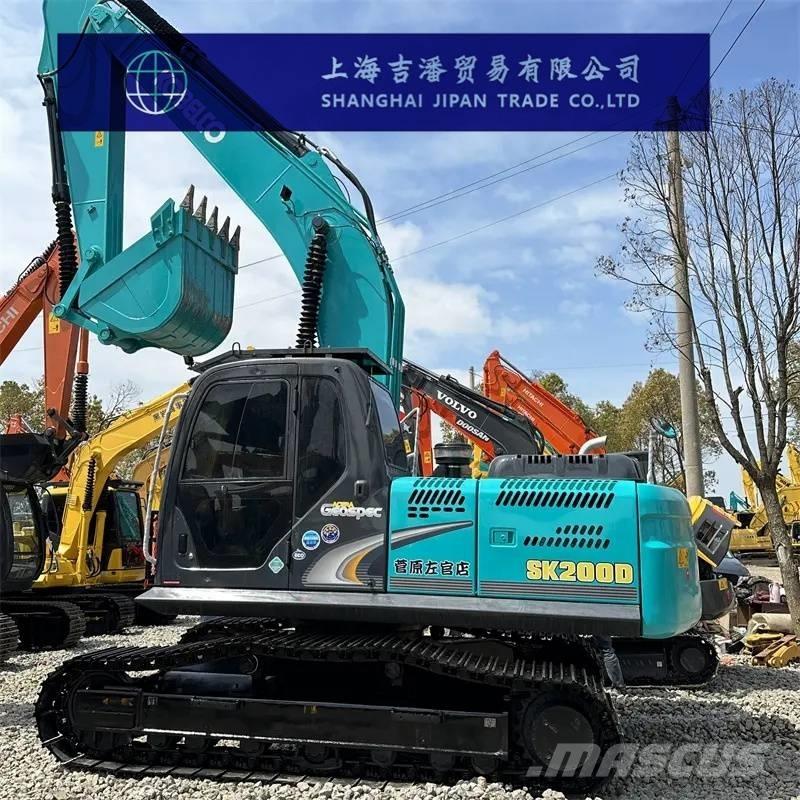

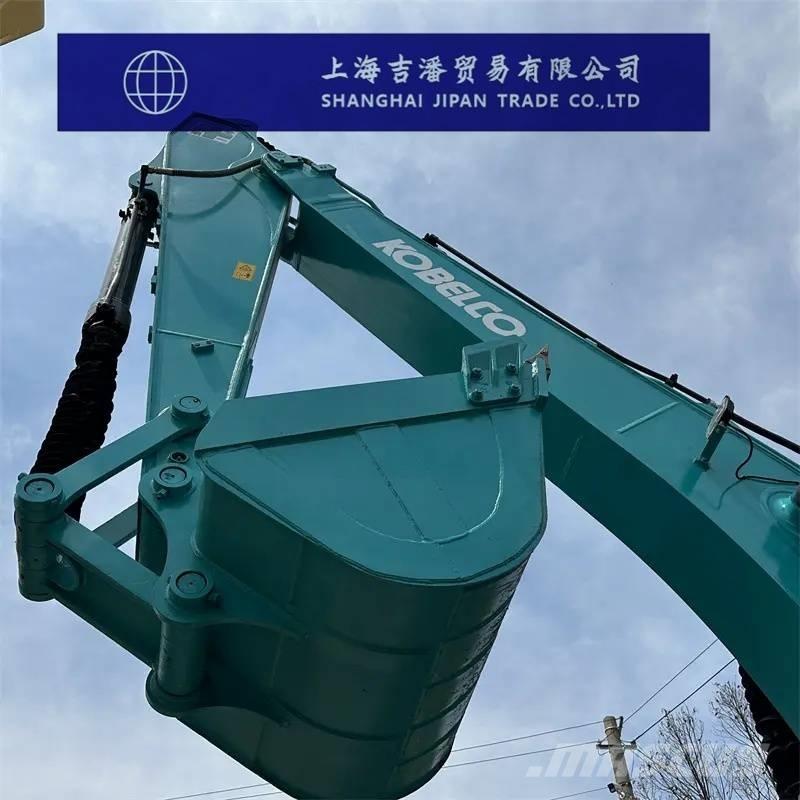

Kobelco SK 200

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification Power, traditional power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)20 The overall working weight of the machine (kg) is 20,600 Bucket capacity (m³)0.8 The length of the bucket pole (mm) is 2.94 Origin: Hangzhou Performance Rotational speed (rpm)12.5 Walking speed (km/h)3.6/6.0 Climbing ability (%)70/35° Grounding specific pressure (Kpa)46 Bucket digging force (kN)143 The digging force of the boom (kN) is 102 Power system Engine model: Hino J05E Rated power (kw/rpm):114/2000 Displacement (L):5.123 Number of cylinders:4 Bore × stroke (mm):112×130 The cooling method is water cooling The working modes are direct injection, four-stroke, turbocharged and built-in intercooler Hydraulic system The main pump type is double variable displacement axial piston pump ×2+ pilot gear pump ×1 The maximum flow rate of the main pump (l/min) is 2×220 Working hydraulic oil circuit (Mpa)34.3 Walking hydraulic circuit (Mpa)34.3 Rotary hydraulic circuit (Mpa)29 Control the hydraulic circuit (Mpa)5 Boom cylinder - Number × cylinder bore × stroke (mm)120×1355 Bucket rod cylinder - Number × cylinder bore × stroke (mm)135×1558 Bucket cylinder - Number × cylinder diameter × stroke (mm)120×1080 Is the hydraulic crushing pipeline standard equipment? Yes Oil capacity Fuel tank (L)370 Hydraulic oil tank (L)146 Engine oil change rate (L)22 Coolant (L)22 Main body size Total transportation length (mm):9450 Total transportation width (mm):2800 Total transportation height (mm):2980 Track grounding length (mm)3370 The total length of the track (mm) is 4170 The width of the track plate (mm) is 600&700&800 Total track width (mm)2800 Track gauge (mm)2200 Minimum ground clearance (mm)450 The ground clearance of counterweights (mm) is 1060 The minimum turning radius (mm) of the front-end working device is 3540 The rear end rotation radius (mm) is 2750 Scope of work Maximum excavation radius (mm):9900 The maximum excavation radius (mm) of the shutdown surface is 9730 Maximum excavation depth (mm):6700 Maximum excavation height (mm):9720 Maximum unloading height (mm):6910 The maximum vertical excavation depth (mm) is 6100 The maximum effective excavation depth (mm) is 6520 Width × height (mm) of the bulldozer board: no bulldozer shovel Bulldozer lift or push deep (mm) :no bulldozer
