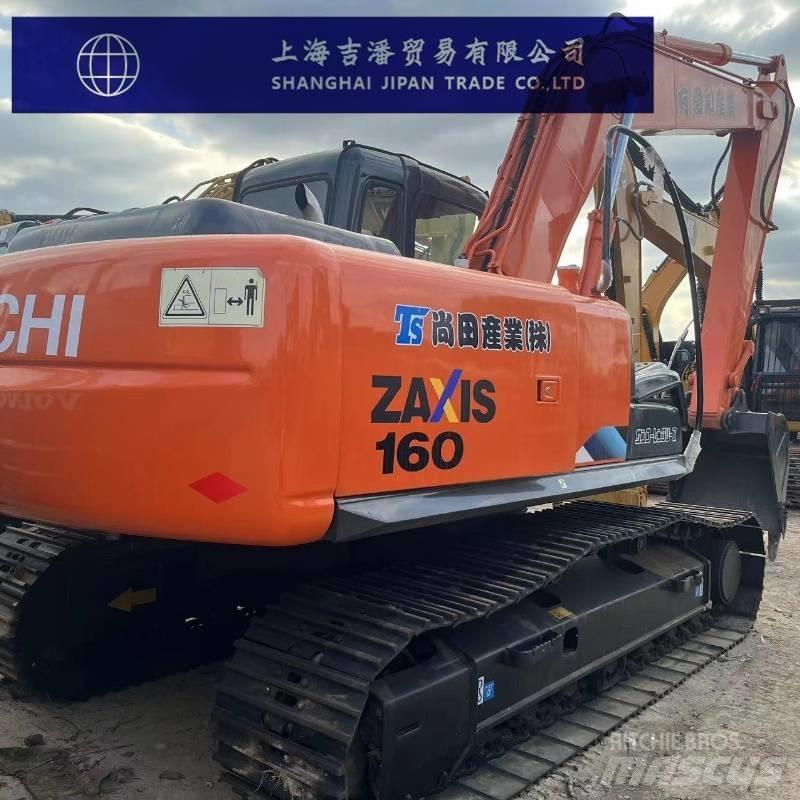

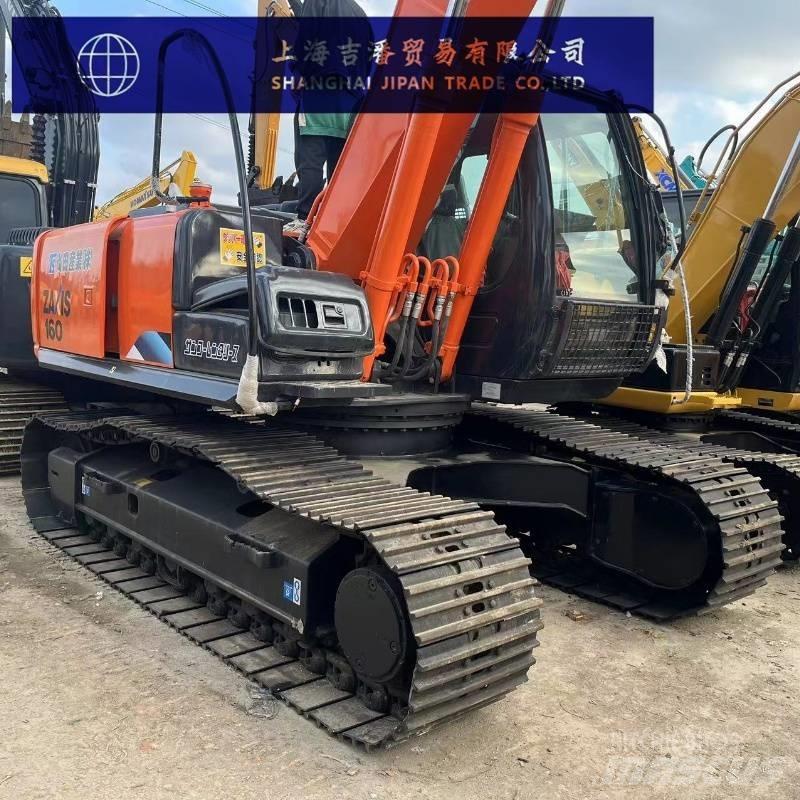

Hitachi ZX 160
السعر من دون ضريبة القيمة المضافة
طباعة
المعلومات
مجموعة المنتجات
حفارات زحافة
الماركة/الطراز
Hitachi ZX 160
سنة الصنع
2023
ساعات الاستخدام
600 ساعة
البلد
الصين
الدرجة العامة
1
2
3
4
5
Mascus ID
5FCA3670
السعر
اختيار عملة
تفاصيل
رقم المخزون الداخلي
1
نوع التيار الكهربائي
ديزل
رقم التصنيع
1
عدد الملاك السابقين
1
الفحص الأخير
2025-06-26
Undercarriage condition
Good Condition
محرك
Original
الوزن القائم
16٬500 كج
ناتج المحرك
90٫2 kW (123 حصان)
Engine manufacturer
Original
رقم التسجيل
1
فئة الانبعاث
المرحلة الخامسة
سعة البطارية
0٫60 m3
Track width
600 مم
ناتج الهيدروليكيات المساعدة
34 لتر/الدقيقة
السرعة القصوى
5٫30 كيلومتر/الساعة
أبعاد النقل (طول×عرض×ارتفاع)
8550 x 2490 x 2950 مم
اللون الأصلي
Original
طول الذراع / الحفار
2٬580 مم
معلومات الحالة/الضمان
1 Year
بلد الإنتاج
اليابان
شروط التوصيل
FCA, FOB, CIF, EXW
Certificates
EPA, CE
مرفقات
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Jason
Whatsapp: +86 13675656717
Mobile:+86 13675656717
Wechat:13675656717
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
ملحقات
مغطس صمام الفتحة الخطية -> صمام أمان الفتحة الخطية – حفار/ذراع
صندوق سلكي Twig
هيدروليكيات إضافية
Engine pre-filter
Skeleton bucket
Battery disconnector
Rotating beacon
Diesel heater
Joystick control

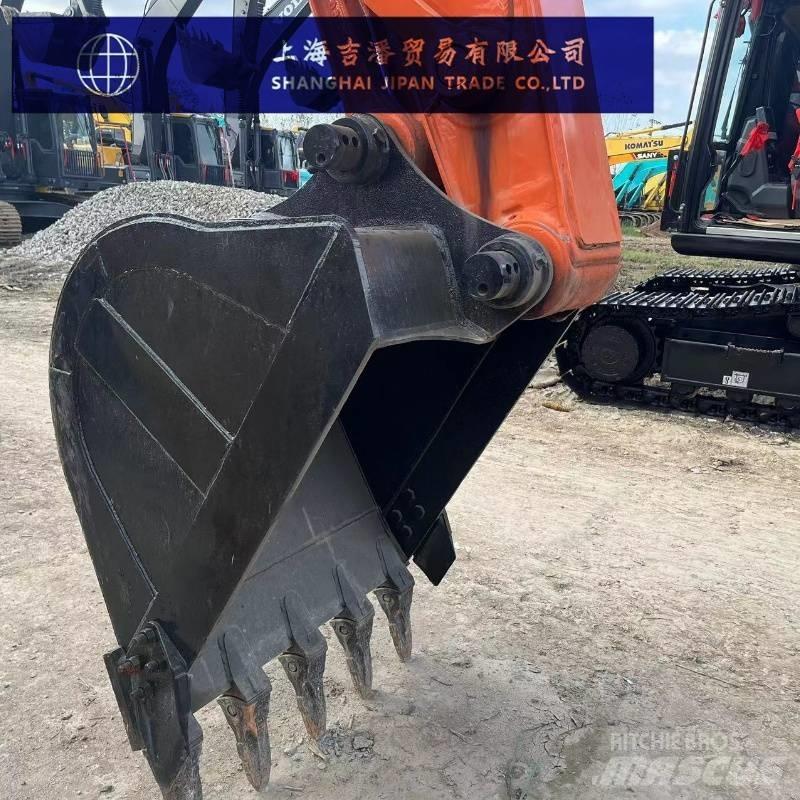

Standard digging bucket
Cable bucket
معلومات أخرى
Hitachi ZX160 excavator parameter configuration
Specification
The working weight of the entire machine (kg) is 16,500
Bucket capacity (m³)0.6
Boom length (mm)5.1
The length of the bucket pole (mm) is 2.58
Origin: Japan
Tonnage (tons)16
Joint venture/import by manufacturers
Power, traditional power
Bucket backhoe
Joint venture/import by manufacturers
Power, traditional power
Performance
Grounding specific pressure (Kpa)48
Rotational speed (rpm) : 13.7
Walking speed (km/h)3.4/5.3
Climbing ability (%)70/35°
Bucket digging force (kN)99
The digging force of the boom (kN) is 65
Power system
Engine model: ISUZU AI-4JJ1X
Rated power (kw/rpm)90.2/2200
Displacement (L) : 2.999
Number of cylinders (4)
Bore × stroke (mm) : 95.4×104.9
The cooling method is water cooling
The working forms are direct injection and turbocharging
Hydraulic system
The main pump type is variable piston pump ×2+ gear pump ×1
The maximum flow rate of the main pump (l/min) is 33.6
Variable piston pump type for walking hydraulic motor ×2
Rotary hydraulic motor type quantitative piston pump ×1
Working hydraulic oil circuit (Mpa)34.3
Walking hydraulic circuit (Mpa)34.3
Rotary hydraulic circuit (Mpa)29.3
Pilot oil circuit (MPa)3.9
Boom cylinder - Number × cylinder bore × stroke (mm)110×80
Bucket rod cylinder - number × cylinder diameter × stroke (mm)120×90
Bucket cylinder - Number × cylinder diameter × Stroke (mm)105×75
Is the hydraulic crushing pipeline standard? No
Oil capacity
Fuel tank (L)320
Hydraulic oil tank (L)125
Engine oil change volume (L)17
Coolant (L)18
Main body size
Total transportation length (mm) : 8550
Total transportation width (mm) : 2490
Total transportation height (mm) : 2950
The total height of the cab (mm) is 2950
Counterweight ground clearance (mm) : 1030
Track grounding length (mm)3100
The total length of the track (mm) is 3920
Track plate width (mm)500
The total width of the track (mm) is 2490
Track gauge (mm)1990
Minimum ground clearance (mm) : 470
The rear end rotation radius (mm) is 2490
Scope of work
Maximum excavation radius (mm) : 8870
The maximum excavation radius (mm) of the shutdown surface is 8700
Maximum excavation depth (mm) : 5980
Maximum excavation height (mm) : 8880
Maximum unloading height (mm) : 6170
Maximum effective excavation depth (mm)5740
Bulldozer lift or push deep (mm) without a bulldozer
