KAO MING KMR-1100S

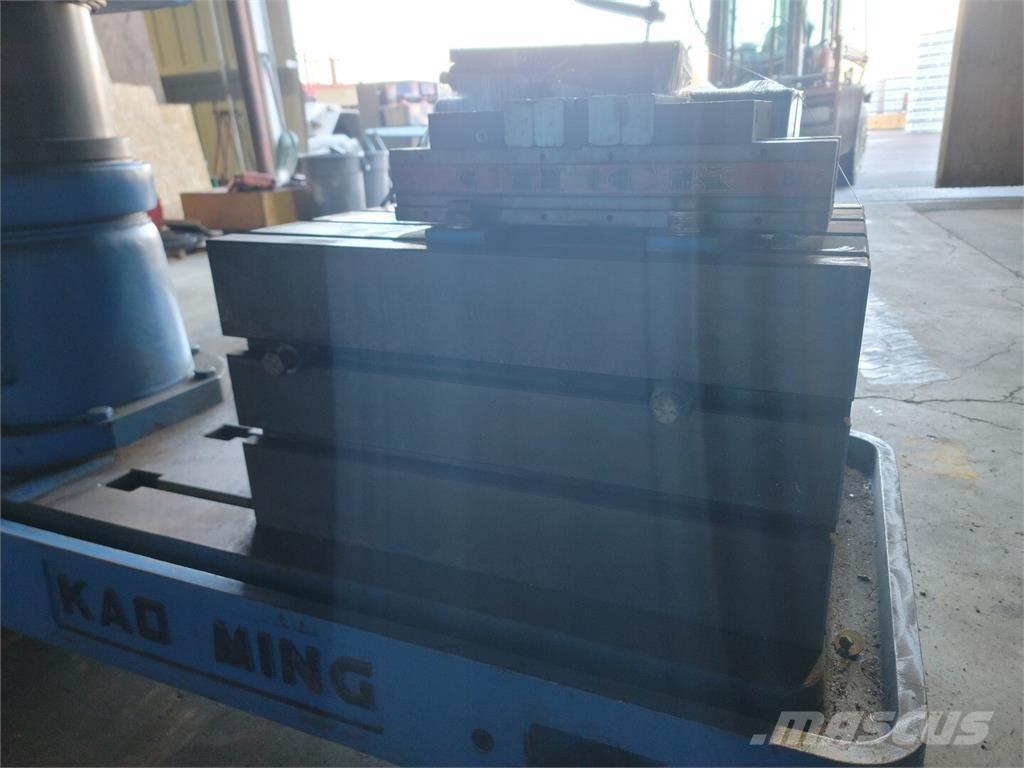

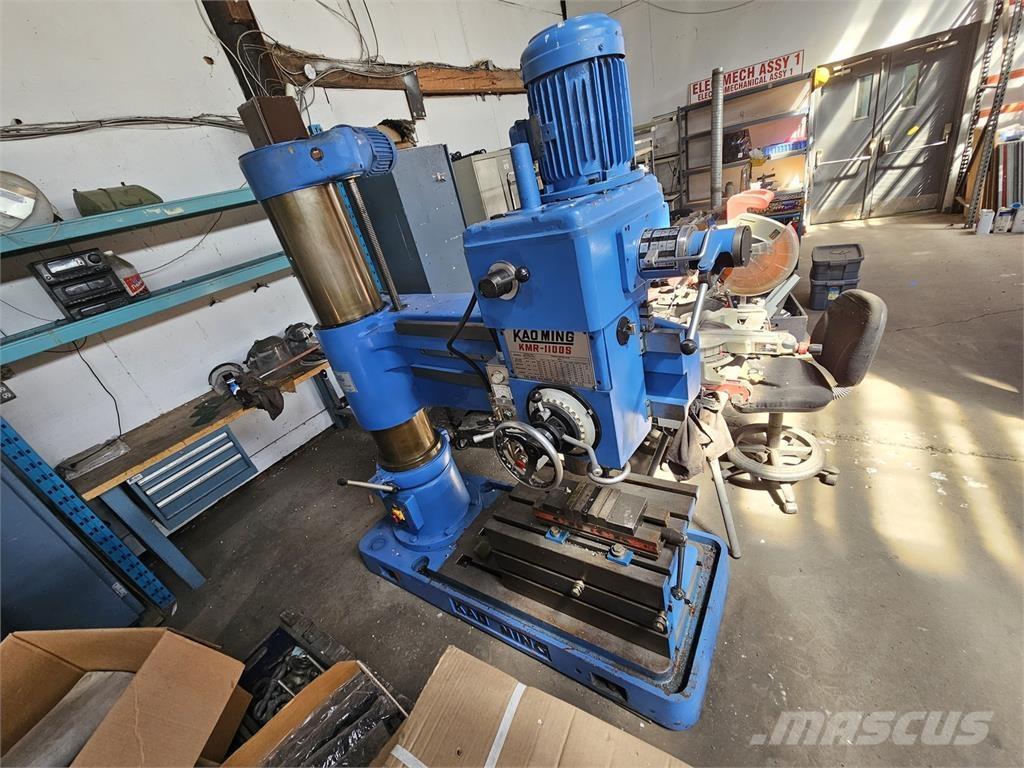

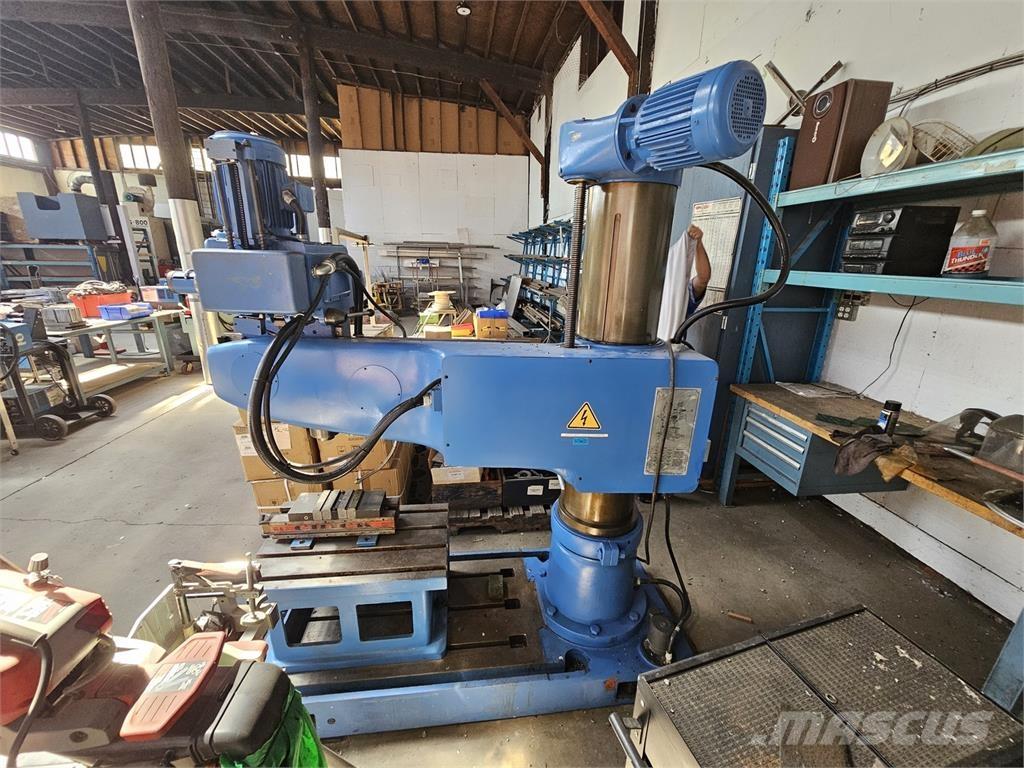

2017 KAO MING KMR-1100S Radial Arm Drilling Machine KMR-11OOS – Metalworking Drill Presses (Metal) – Radial Arm Drill , 27.55" , MT#4 , 19.68" x 29.52" x 15.74" , 3 hp, 220 volts, 3-phase Title: Radial Arm Drilling Machine KMR-11OOS SKU: 148004 Model: KMR-1100S Year: 2017 Condition: Used S/N: R10534 GeneralType:Radial Arm Drill Arm Travel:27.55" Morse Taper:MT#4 Table Size:19.68" x 29.52" x 15.74" ElectricalHorsepower:3hp Voltage:220volts Phase:3-phase Made In: TAIWAN Dimensions: 100.00 (H) x 30.00 (W) x 74.00 (L) inches Travels: - Spindle head longitudinal travel: 768 mm // 30.25" - Vertical arm travel: 700 mm // 27.55" - Spindle center to column center: 505 - 1250 mm // 19.88 - 49.21'' - Spindle center to column face: 355 - 1100 mm // 13.97 - 43.30" - Spindle end to work base surface: 345 - 1265 mm // 13.58 - 49.80" - Work base surface area: 1260 x 760 mm // 49.60 x 29.92" - Column diameter: 300 mm // 11.81" - Column height: 2108 mm // 82.99" - Max height spindle head to floor: 2503 mm // 98.54" - Box table L x W x H: 500 x 750 x 400 mm // 19.68 x 29.52 x 15.74" Spindle: - Taper: MT4 - Speed range: 49 - 1524 rpm - Number of speeds: 9 steps - Feed range: 0.1 / 0.22 / 0.35 mm/rev // 0.004 / 0.0088 / 0.014"/rev - Number of feeds: 3-step - Spindle travel: 220 mm // 8.66" - Quill diameter: 80 mm // 3.14" Working capacity: - Drilling (cast iron / steel): 55 / 45 mm // 2.16" / 1.77" - Boring (cast iron / steel): 150 / 100 mm // 5.90" / 3.93" - Tapping (cast iron / steel): 38 / 25 mm // 1.49" / 0.98" Motors: - Main spindle motor: 2.2kW // 3hp - Arm elevating motor: 1.5kW // 2hp
