IHC Fundex FPP 20SNZ

السعر من دون ضريبة القيمة المضافة

السعر عند توقيع الطلب

Favoriteالمفضلة
shareحصة
Save searchحفظ عملية البحث
طباعة

المعلومات

مجموعة المنتجات
مطارق دق خوازيق هيدروليكية
الماركة/الطراز
IHC Fundex FPP 20SNZ
سنة الصنع
2005
خيارات إضافية
Reconditioned
موقع الماكينة
Etten Leur، Noord-Brabant
البلد
هولندا
الدرجة العامة
1
2
3
4
5
Mascus ID
9EAB5471

تفاصيل

رقم المخزون الداخلي
05.93.20SNZ
يصلح للماكينات التالية
Fundex F12SE, Fundex F3500, Fundex F15, Hitachi KH 150/180/230/300 GLS and other pile driving or drilling rigs which need an extra hydraulic power pack
رقم التصنيع
05.93-20SNZ
فئة الانبعاث
المرحلة الثانية
وزن النقل
8٬500 كج
Engine manufacturer
DAF XF390
أبعاد النقل (طول×عرض×ارتفاع)
4385 x 1600 x 2700 مم
بلد الإنتاج
هولندا
شروط التوصيل
FCA, EXW
مرفقات
Lifting points Noise reduction material in doors Control box
مستندات
معلومات أخرى

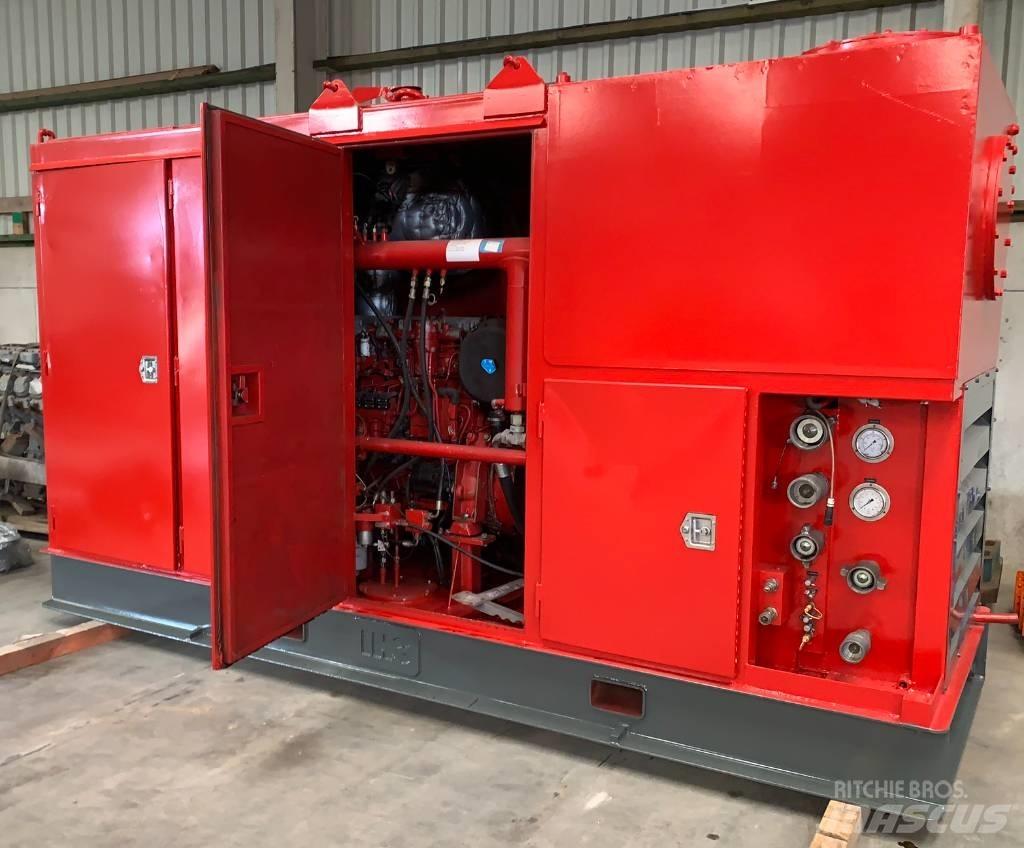

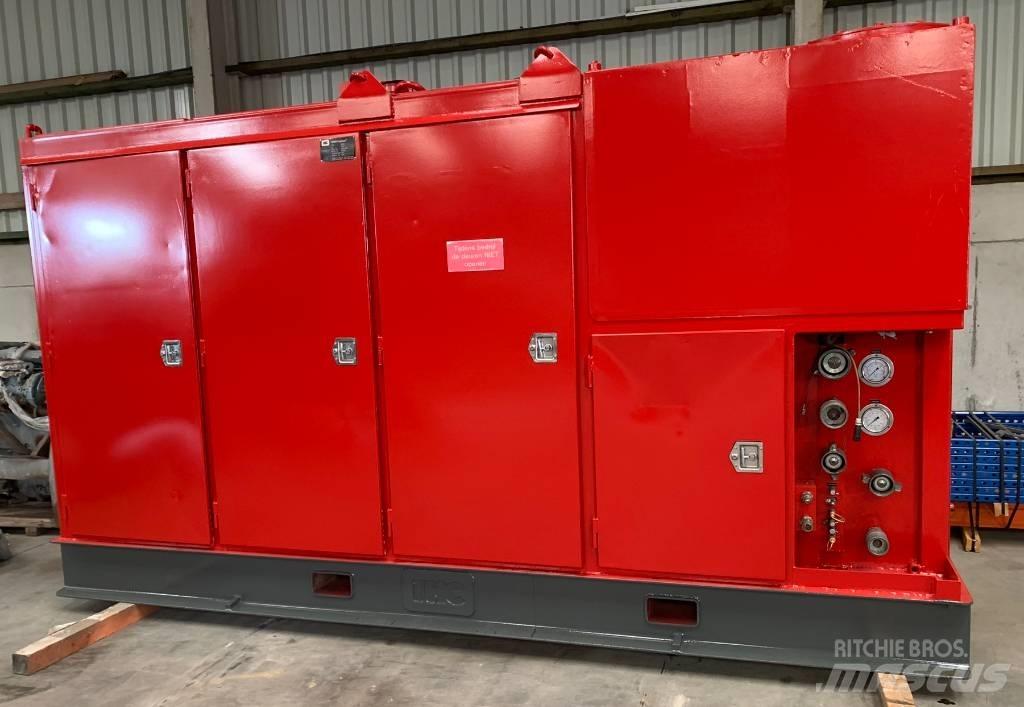

Directly available: IHC Fundex FPP 20SNZ multi purpose type, hydraulic power pack. This unit can be used to provide the necessary oil flow to power an IHC Hydrohammer, Junttan or PVE hydraulic impact hammer, rotary head or vibratory hammer. With some minor adjustments the power pack can also be used to power winches or dredging pumps. The power pack has an open loop hydraulic system and a very reliable Poclain hydraulic pump. The maximum flow at 320 bar is 520 ltr/min. The maximum oilflow at for example 225 bar is 700 ltr/min. The power pack has got lifting points and preparations to lift it easily with a forklift. The engine is from DAF. The DAF engines are also used in the DAF trucks so parts and service are widely available. This model is from the year 2005 and has 15.750 hours of which many are also stationairy because it was placed on the rear of a piling rig and it was not used for piling during the whole day. The power pack is serviced and tested and ready for immediate work.عرض المزيد
