Sany HBT6016C-5D
السعر من دون ضريبة القيمة المضافة
طباعة
المعلومات
مجموعة المنتجات
مضخات خرسانة
الماركة/الطراز
Sany HBT6016C-5D
سنة الصنع
2015
خيارات إضافية
غير مستعمل,Reconditioned
البلد
الصين
الدرجة العامة
1
2
3
4
5
Mascus ID
D1CAD155
السعر
اختيار عملة
تفاصيل
رقم المخزون الداخلي
AICP009
رقم التصنيع
AICP009
الوزن القائم
6٬800 كج
نوع الحركة
ثابت
قدرة الضخ
180 kW
أبعاد النقل (طول×عرض×ارتفاع)
6.830 × 2.125 × 2.685 mm متر
نوع المضخة
كبّاس
بلد الإنتاج
الصين
شروط التوصيل
CIP, CIF
Certificates
EPA, CE, TÜV
معلومات أخرى

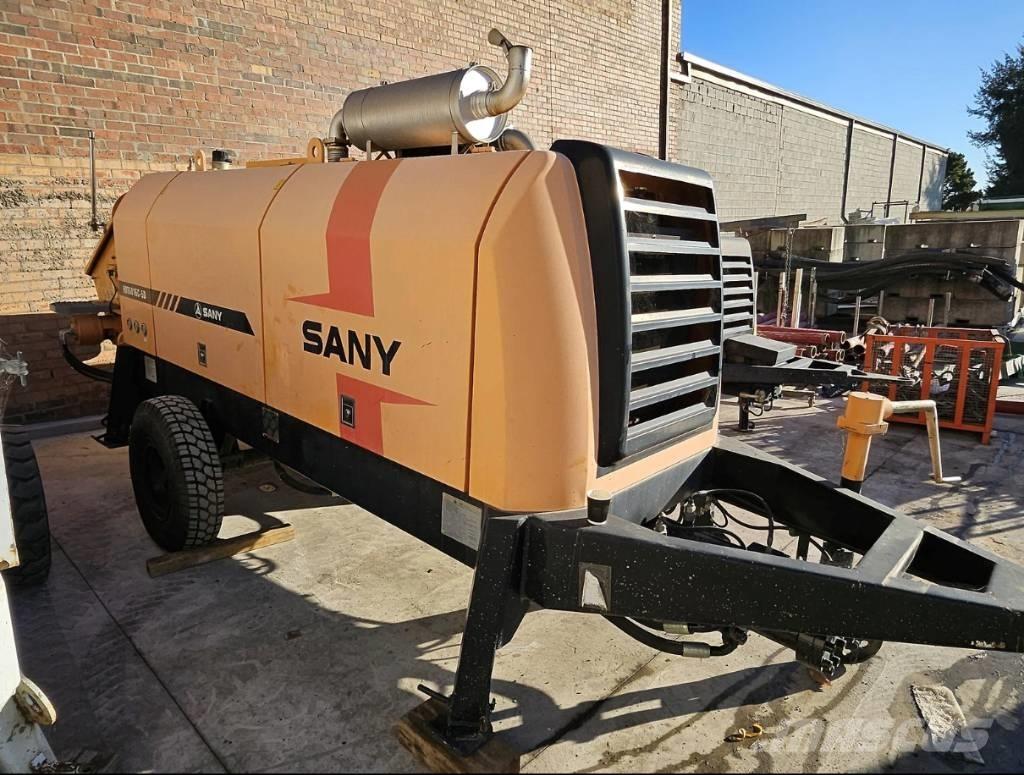

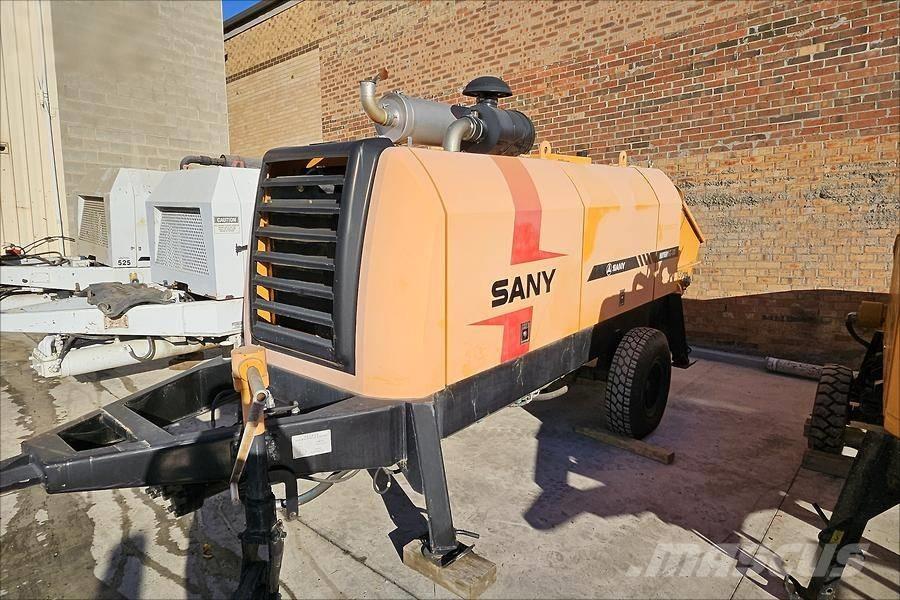

Sany 【ACHIEVE】TOP CONDITION!!! demo new low hours 2015 HBT6016C-5D stationary concrete pump
【ACHIEVE】TOP CONDITION!!! demo new low hours Sany Concrete Trailer Pump 2015 HBT6016C-5D
FOR SALE – 2015 HBT6016C‑5D Trailer Concrete Pump
Professional-grade, trailer-mounted concrete pump in outstanding condition—fully operational, well maintained, and ready for immediate deployment on any construction or pouring project.
Key Specifications:
Engine Power: ~180 kW @ ~2200 rpm
Max Output (Theoretical): 70 m³/h @ low pressure / 45 m³/h @ high pressure
Max Delivery Pressure: 10 MPa (low) / 16 MPa (high)
Delivery Cylinder Bore & Stroke: Φ200 × 1800 mm
Hopper Capacity & Feed Height: ~0.7 m³ hopper; feed height approx.
Dimensions (L × W × H): approx. 6,830 × 2,125 × 2,685 mm
Gross Weight: ~6,800 kg
Product Highlights:
Featuring S-Valve hydraulics with advanced pressure-difference sensing and reversing technology, electro-hydraulic buffering, and self-cyclic impurity filtration. This reduces maintenance time and extends system life
Self-Diagnosis Monitoring: Real-time fault detection (50+ fault codes) cuts downtime by roughly 70%
Automatic Piston Retraction: One-button retraction for quicker maintenance turns
High-Efficiency Valve & Mixer Motor: Boosts flow consistency, reduces clogs, ensures smooth aggregate mixing
Smart Motion Controller: Combines pumping algorithms and fault libraries onboard for reliable operation; includes emergency override mode for safe shut-down or cleaning
Energy-Saving System: Automatically adjusts engine output to load, delivering up to 25% fuel savings and lower operating cost
Wear-Resistant Build: High-tech Sino‑German materials for key wear parts (pistons, wear plates, cutting ring) for extended service life
