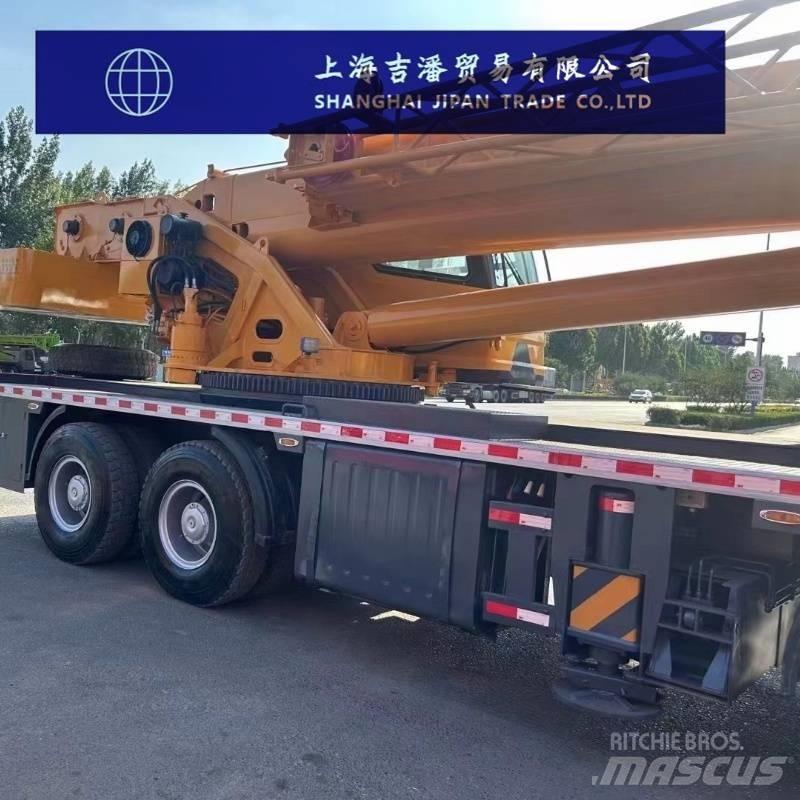

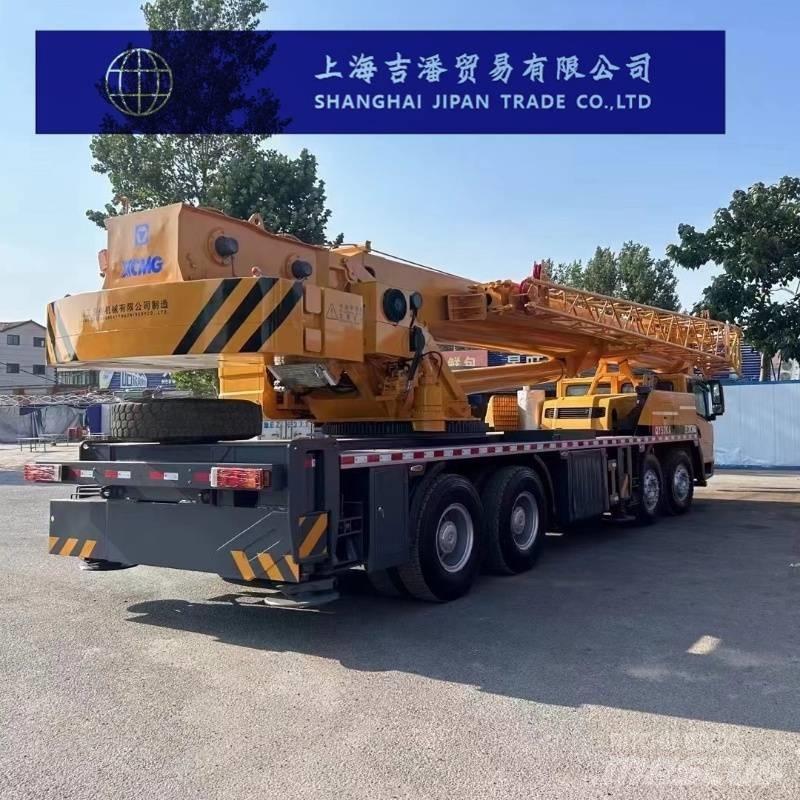

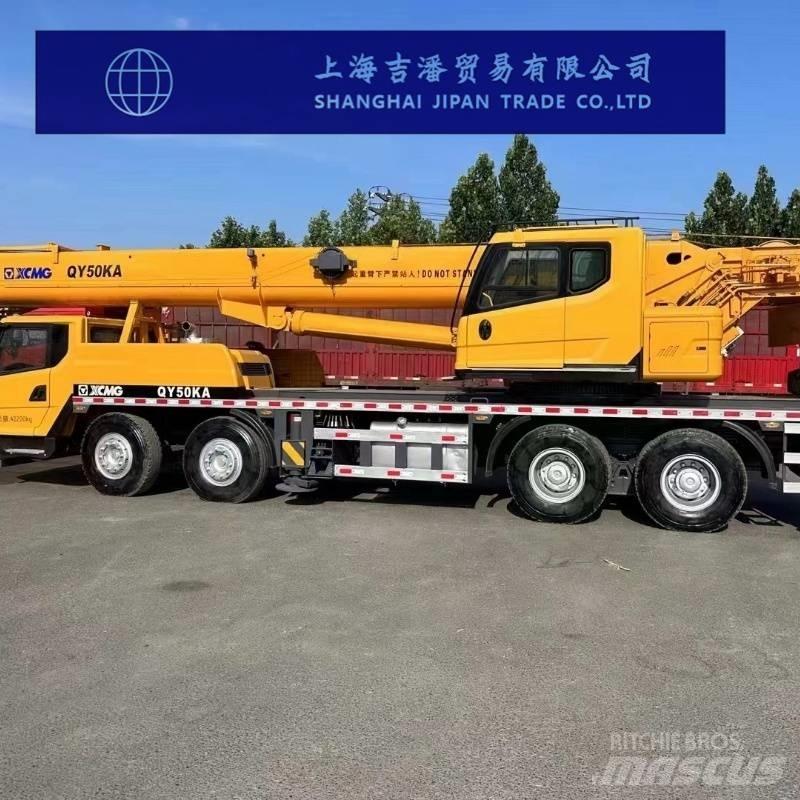

XCMG QY 50 KA

Fly Jib,Hook,Counter Weight,ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs. Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email:

Detailed parameters of XCMG QY50KA truck crane Dimensional parameters The overall length of the machine is 13,770mm Overall width of the machine: 2800mm Overall height of the machine: 3570mm Wheelbase: 1470+4105+1350mm Track: 2304/2304/2075/2075mm Weight parameter Total mass in driving condition: 42,000 kg Axle load: Front axle 16,000 kg/rear axle 26,000 kg Engine parameters Engine type: D10.38 A - 40 / SC10E380. 1 q4 / WP10.375 E41 Rated engine power: 276/2200kW, 279/2200kW Engine rated torque: 1500N·m/ (1100-1600) r/min, 1500N·m/1300r/min, 1480N·m/ (1200-1600) r/min Driving parameters Maximum driving speed: 80km/h Minimum turning diameter: 24 meters Minimum turning diameter of the boom head: 28.158 meters Maximum climbing gradient: 40% Minimum ground clearance: 327mm Approach Angle: 17° Departure Angle: 11° Braking distance: ≤10 meters Fuel consumption per 100 kilometers: 42 liters Main performance parameters Maximum rated total lifting capacity: 50 tons Minimum rated amplitude: 3m The maximum lifting moment of the basic boom is 1822kN·m The turning radius at the tail of the turntable: 3482mm Outrigger parameters Longitudinal: 5.91m Horizontal: 6.9m (4.7m) Crane boom parameters Main arm length: 11.3-42.7 meters Auxiliary arm length: 9.2m or 16m The maximum lifting height of the basic boom is 11.5 meters The maximum lifting height of the longest main boom is 42.7 meters The maximum lifting height of the longest main boom and auxiliary boom is 57.7 meters Working speed parameter Lifting speed - Main lifting mechanism: 85m/min when fully loaded, 130m/min when unloaded Outrigger retraction and release - horizontal (simultaneously) : 20 seconds
