Unic B-506-5.2
السعر من دون ضريبة القيمة المضافة
السعر عند توقيع الطلب
طباعة
المعلومات
مجموعة المنتجات
رافعات صغيرة
الماركة/الطراز
Unic B-506-5.2
سنة الصنع
2016
ساعات الاستخدام
767 ساعة
موقع الماكينة
Duisburg، Nordrhein-Westfalen
البلد
ألمانيا
الدرجة العامة
1
2
3
4
5
Mascus ID
470353FC
تفاصيل
عدد الملاك السابقين
1
الوزن القائم
5٬150 كج
أقصى قدرة رفع
5٬000 ton
طول الذراع
15٫7 متر
قدرة الرفع القصوى في نهاية الذراع
900 ton
طول ذراع الرافعة
15٫7 متر
أقصى ارتفاع للرافعة
19 متر
ارتفاع خطاف الرافعة - الذراع الأفقية
16 متر
ارتفاع خطاف الرافعة - الذراع الدوارة
3 متر
أبعاد النقل (طول×عرض×ارتفاع)
4870 x 1400 x 2035 مم
Tyre brand
NM-Antriebsketten
بلد الإنتاج
اليابان
شروط التوصيل
FCA, CFR, EXW
Certificates
CE, TÜV
ملحقات
خطاطيف حمل
3-rollig, max. 5,0 t
1-rollig, max. 1,7 t
Einseilhaken, max 0,9 t
معلومات أخرى

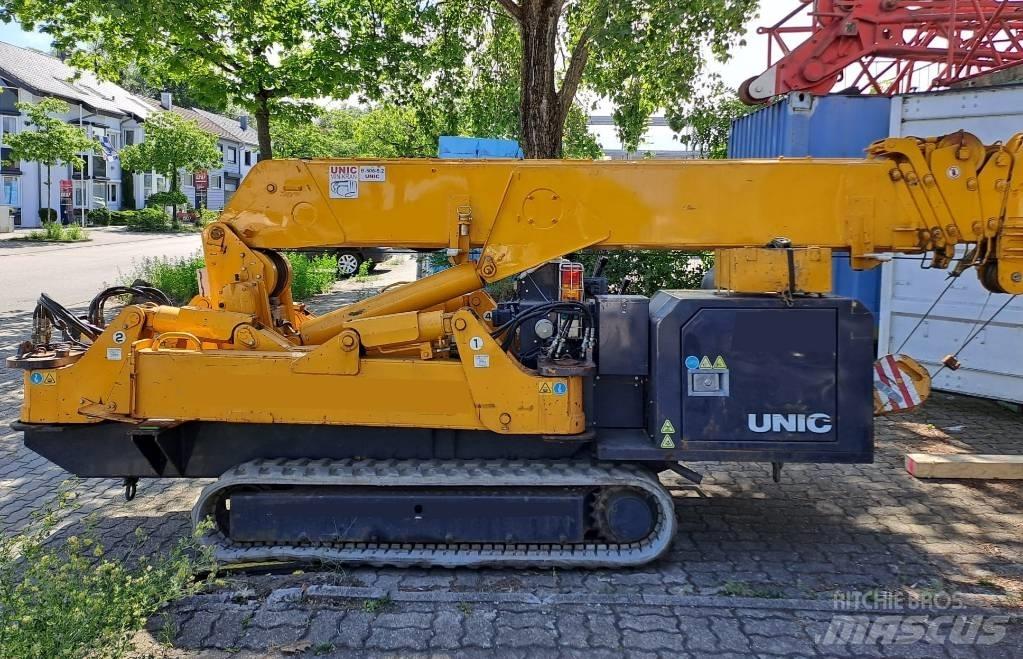

UNIC mini crawler crane, model B-506-5.2, year 2016, (used)
only 767 h working hours
incl. German DEKRA approval
max. loading capacity 5,0 t
TECHNICAL DETAILS:
Max. Loading 5.0 t x 2.0 m
Max. Hook height 19.0 m
Max. Working area 16.5 m
Dimensions: length 4870 mm (L) x 1400 mm (W) x 2035 mm (H)
Weight approx. 5.150 kg
STANDARD EQUIPMENT:
3.93 – 15.71 m telescopic main boom fully hydraulic
Boom head with 3-sheaves
3,0 m folding jib with sheave head and searcher hook, max. 850 kg, hydr. adjustable 0-20°
1,0 m jib, max. 1,7 t, hydr. adjustable 0-20°
1x hoist winch
German rope, low-spin, fine braided
360 ° rotation range (continuous), Diesel engine 18 kW (24,5 HP)
Electric drive 380 V (AC 50/60 Hz, power 7,5 kW) with cable 50,0 m
Radio remote control
Safe load indicator Rayco Wylie Systems i4500
Variable footprint, computer controlled, variable positioning of each outrigger length (mininum, half, maximum),
automatic detection of the outrigger position and calculation of the max. load of each outrigger
Overwinding alarm, computer controlled intelligent voice warning system
working lights, driver´s seat, Hydrostatic drive, step-less forward and reverse Speed 0 – 3,0 km/h,
Track ground length 1.800 mm,
Track ground width 300 mm
Track ground pressure 0,46 kg/cm2
Hook block 3-sheaves, max. loading capacity 5,0 t
Hook block 1-sheave, max. loading capacity 1,7 t
Ball, max. loading capacity 900 kg
Superstructure yellow, Chassis Black-grey
Ideal for limited work areas or confined access to the work area and an intelligent solution and alternative to the conventional mobile crane (large crane)
Various mini crane models with lifting capacities of 0.99 - 10.0 t lifting heights up to 31.0 m
Used mini crane models on demand until 8.0 t loading capacity.
Mini & Mobile Cranes Körner GmbH
Alte Kaserne 23 47249 Duisburg Nordrhein-Westfalen ألمانيا
