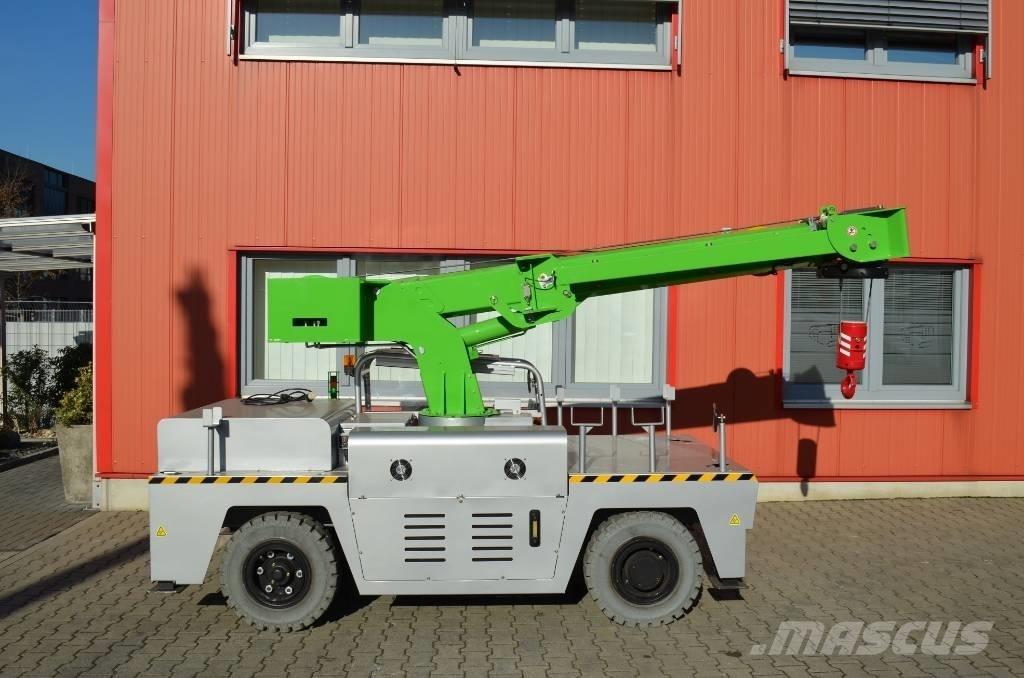

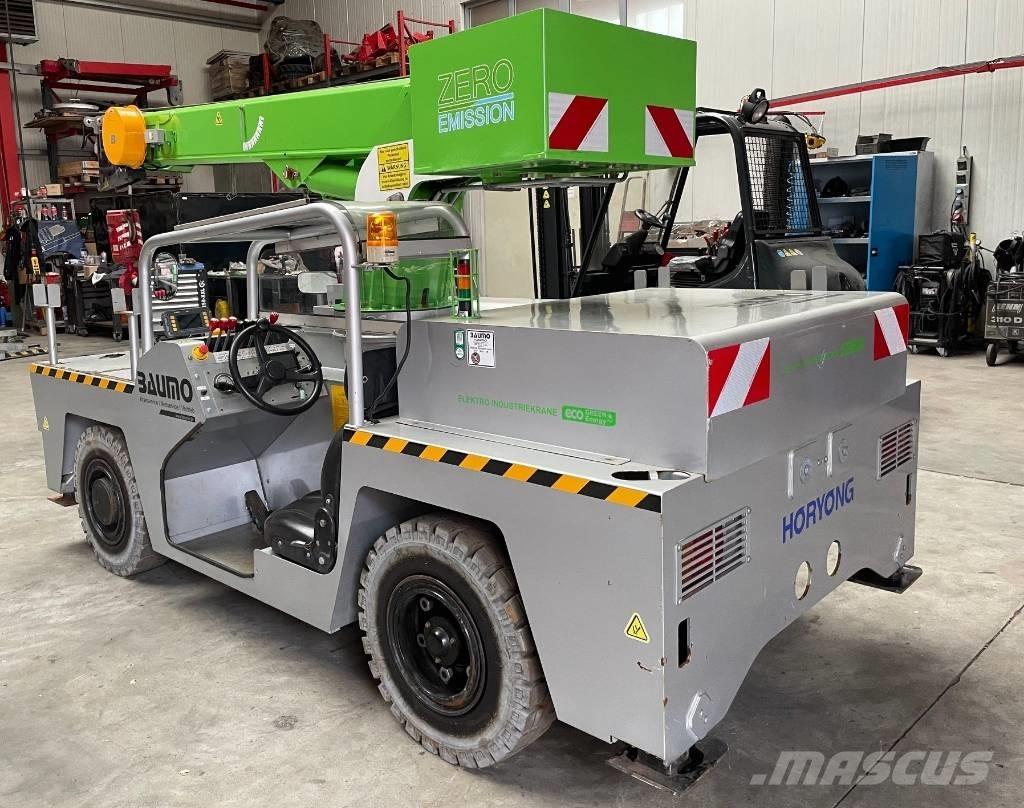

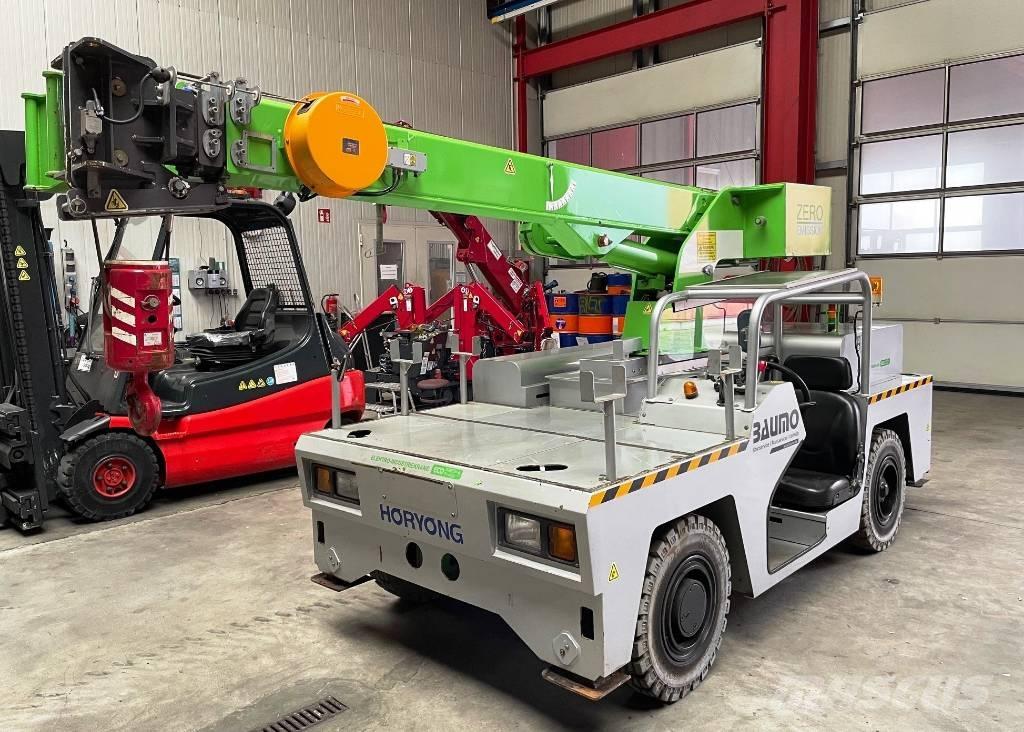

Horyong BMK403 ECO
السعر من دون ضريبة القيمة المضافة
السعر عند توقيع الطلب
طباعة
المعلومات
مجموعة المنتجات
رافعات صغيرة
الماركة/الطراز
Horyong BMK403 ECO
سنة الصنع
2018
ساعات الاستخدام
290 ساعة
موقع الماكينة
Duisburg، Nordrhein-Westfalen
البلد
ألمانيا
الدرجة العامة
1
2
3
4
5
Mascus ID
F04AC589
تفاصيل
عدد الملاك السابقين
1
الوزن القائم
4٬019 كج
أقصى قدرة رفع
4٫20 ton
الحد الأدنى لطول ذراع التطويل
3٫07 متر
طول الذراع
6٫80 متر
قدرة الرفع القصوى في نهاية الذراع
0٫91 ton
طول ذراع الرافعة
6٫80 متر
أقصى ارتفاع للرافعة
10٫2 متر
ارتفاع خطاف الرافعة - الذراع الأفقية
10٫2 متر
ارتفاع خطاف الرافعة - الذراع الدوارة
2٫20 متر
أبعاد النقل (طول×عرض×ارتفاع)
4350 x 1570 x 2020 مم
الإطارات الأمامية / محمل السيارة المتبقي
90
الإطارات الخلفية المتبقية
90
بلد الإنتاج
الصين
شروط التوصيل
FCA, CIP, CFR, EXW
Certificates
CE, TÜV
مرفقات
Klappspitze 2,2 m, mit Rollenkopf, max. Traglast 1,2 t
Abwinklung mechanisch 0°, 25°, 50°
Hakenflasche 1-rollig, max. Traglast 4,0 t
ملحقات
خطاطيف حمل
معلومات أخرى
HORYONG Battery-Powered Industrial Crane BMK-403 ECO, Used Machine
Battery Drive, CE 2018, approx. 290 operating hours
UVV inspection valid until 04/2026
TECHNICAL DATA:
Max. lifting capacity: 4.2 t at 0.9 m
Max. movable load: 2.9 t
Max. load on carry deck: 2.5 t
Max. working radius: 6.7 m (8.2 m with jib extension)
Max. hook height: 8.41 m (10.2 m with jib extension)
DIMENSIONS & WEIGHTS:
Length: 4,350 mm (Chassis: 3,330 mm)
Width: 1,570 mm
Height: 2,050 mm (2,130 mm with outriggers)
Weight: approx. 4,019 kg
Ground clearance: 180 mm
Outrigger base: 2,330 mm x 3,330 mm
Minimum turning radius: 3,620 mm
CRANE SUPERSTRUCTURE FEATURES:
Telescopic boom: 3.07 to 6.8 m, fully hydraulic, 3-section
Boom angle: 0° to +70°
Hoist winch with anti-twist, fine braided hoist rope
360° unrestricted slewing range
Electronic load moment limiter: Rayco Wylie i4500
Working range limiter
Acoustic and visual warning signals
Work lights, rotating beacon, emergency stop switch
Single-sheave hook block, max. load capacity: 4.0 t
CRANE UNDERCARRIAGE FEATURES:
Horyong 2-axle chassis, lifting lugs front and rear
Drive system: 4 x 2 x 2 (1st axle driven, 2nd axle steered)
Carry deck approx. 1.55 m², max. load capacity 2.9 t
(with evenly distributed load)
3 transport holders per side (plug-in function) for pipes and
limit bars, adjustable and removable
4-point hydraulic outriggers with support plates,
single-stage, extendable at an angle front and rear
Electric motor: 2 x 10 kW, 72V / 300 Ah
with rechargeable batteries (accumulators),
integrated battery charger, incl. charging cable
Max. travel speed: 6 km/h
4x NM tires (light grey), size 7.0 x 12
Open driver’s cab with protective grid roof and control panel
Electric parking brake with switch activation
2 storage boxes for support pads
STANDARD PAINTWORK:
Crane superstructure: green
Chassis: silver-grey
Mini & Mobile Cranes Körner GmbH
Alte Kaserne 23 47249 Duisburg Nordrhein-Westfalen ألمانيا
