BIK HL 58T
السعر من دون ضريبة القيمة المضافة
السعر عند توقيع الطلب
طباعة
المعلومات
مجموعة المنتجات
شاحنات أخرى
الماركة/الطراز
BIK HL 58T
سنة الصنع
2025
خيارات إضافية
غير مستعمل
موقع الماكينة
Milford، Massachusetts
البلد
الولايات المتحدة الأمريكية
الدرجة العامة
1
2
3
4
5
Mascus ID
A183419A
تفاصيل
نوع التيار الكهربائي
ديزل
الدفع
يسار
ناتج المحرك
346 kW (470 حصان)
أجهزة نقل
Automatic Trans
سعة الصهريج
303 لتر
لون
WHITE
بلد الإنتاج
الولايات المتحدة الأمريكية
خيارات الجسم
رافعة, أبواب جانبية, ستريو, التحكم في السرعة, تكييف الهواء, وسائد هوائية
معلومات أخرى
Boom Details

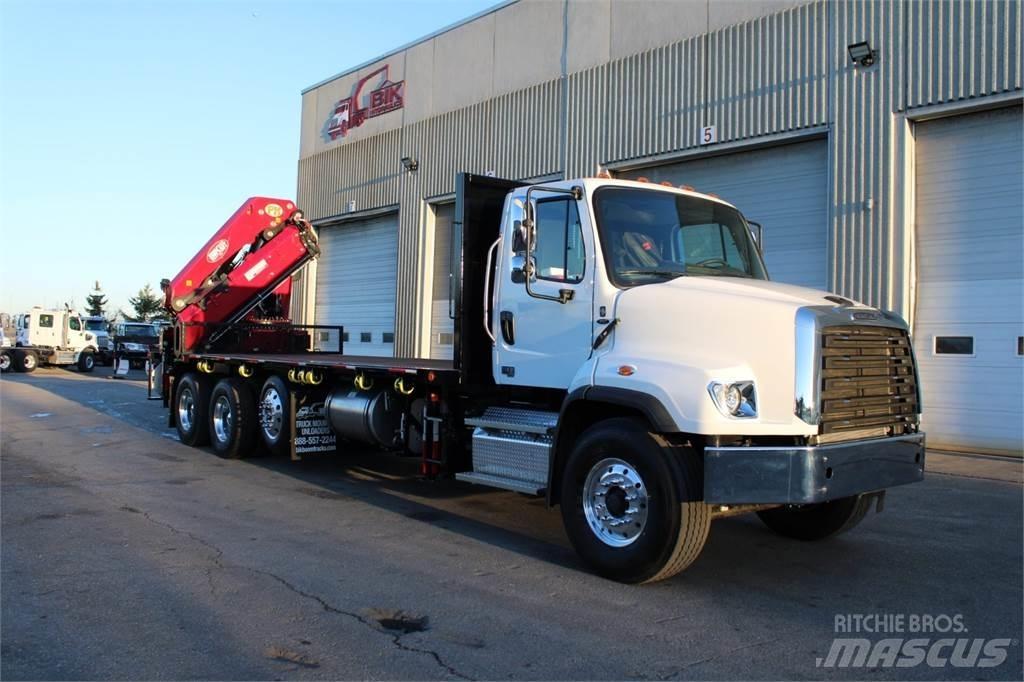

New – BIK “Heavy Lift” Series HL 58T
PM 58 ton/m – Folding Hydraulic Knuckle Boom – 3 hyd extensions to 32’ Horizontal reach
Horizontal Capacity
28,200 lbs ... 14′
20,000 lbs ... 20′
15,200 lbs ...25′
12,100 lbs ... 32′
3-Independent Extensions, PM connecting rods at First Boom and Knuckle, Continuous Rotation and Dual Planetary Gear
Rotation
Double pilot operated on slewing and pilot operated check valves on all cylinders
Hydraulic Extra Wide Main outriggers
at pedestal – 28’ – 7” span
Hydraulic Oil Cooler, high pressure return filter and min. 92-gallon oil tank for boom
DANFOSS
Proportional Control Valve & SCANRECO
Proportional Radio Remote Control
Simplified Hydraulic Overload System allowing maximized uptime crane and easy maintenance
Scanreco Radio Remote
Control includes: 2-batteries, in-cab charger, back-up cord, Crane Painted PM Blue, load chart in FT. & LBS.
Warranty: 1-Yr. part & labour on entire boom, 3-Yr. on Structural Components
Load Tested & Installed at end of frame, with integral sub-frame to meet or exceed all CMVSS Standards
Deck Details
New – 21.5′ Long x 102″ Hardwood Deck
Installed on Truck, with 54” of main sill overhang for Sub-Frame of Knuckle Boom
Hardwood Deck surface
66” Headboard
Reverse Rail sliding track on passenger side
8 winches and straps (30’) with required Conspicuity and Reflectors. All steel painted Gloss Black.
Truck Details
New – 2024 Freightliner 114SD 4- Axle Diesel Truck
70,000 lb GVWR
Truck Cab White Colour
Diesel 470 hp,
Automated trans
20,000lb fronts with 425/65R22.5 Front Floatation tires on
Alum rims
46,000lb Rears on Tuftrac Susp with 11R22.5 tires on Aluminum rims
Double frame chassis, 54” spread at tandems
Truck Features Include: Two Stage Engine Brake, Air Cond., AM/FM stereo, cruise, tilt/tele steer column, power windows/locks, chrome bumper and grill, power and heated mirrors, engine block heater, painted ext visor, trailer air tow package, rear wheel lock ups, 80 gal alum fuel tank, trailer air tow package, etc.
Also Included
:
(2) pcs – PVC stabilizer pads with holders at rear
Program radio remote control for engine stop/start and truck shut off
(1) pc – 48” aluminum Storage Boxes installed
36” aluminum storage box installed
Options at Extra Cost
:
1” drawplate installed at rear with heavy duty pintle hook and trailer hook ups
Front Auxilary Stabilizers – Hyd out & Down Type – 21’ Span, Install under frame back of cab
Kenworth T-880 instead of Freightliner add
